Features:
- For economical production of internal threads in a wide range of materials
- Optimized cutting geometry that works well in a job shop enviroment with multiple materials
Product Specifications
| Cutter Diameter (mm) | 0.496" |
| Pitch | 11 |
| Size | 5/8" |
| Thread Standard | UNC |
| Applicable Material | Universal |
| Application | Full Profile |

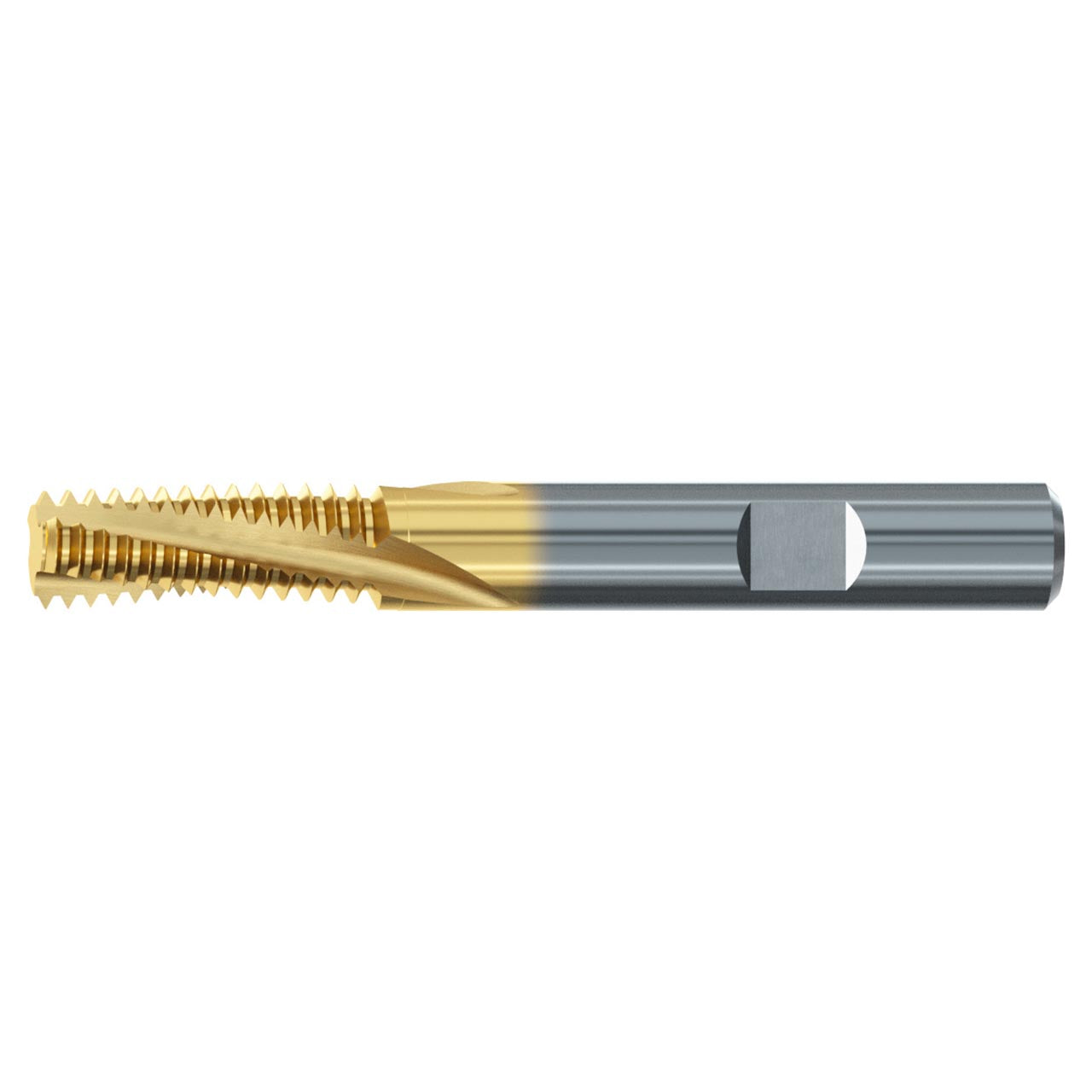

| Type | MULTI-THREAD MILL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Coating/Finish | TIN-T21 |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 1/2" |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 3.75" |
| Flute Length (mm) | 1.316" |
| Flute Direction | Right Hand, Left Hand |
