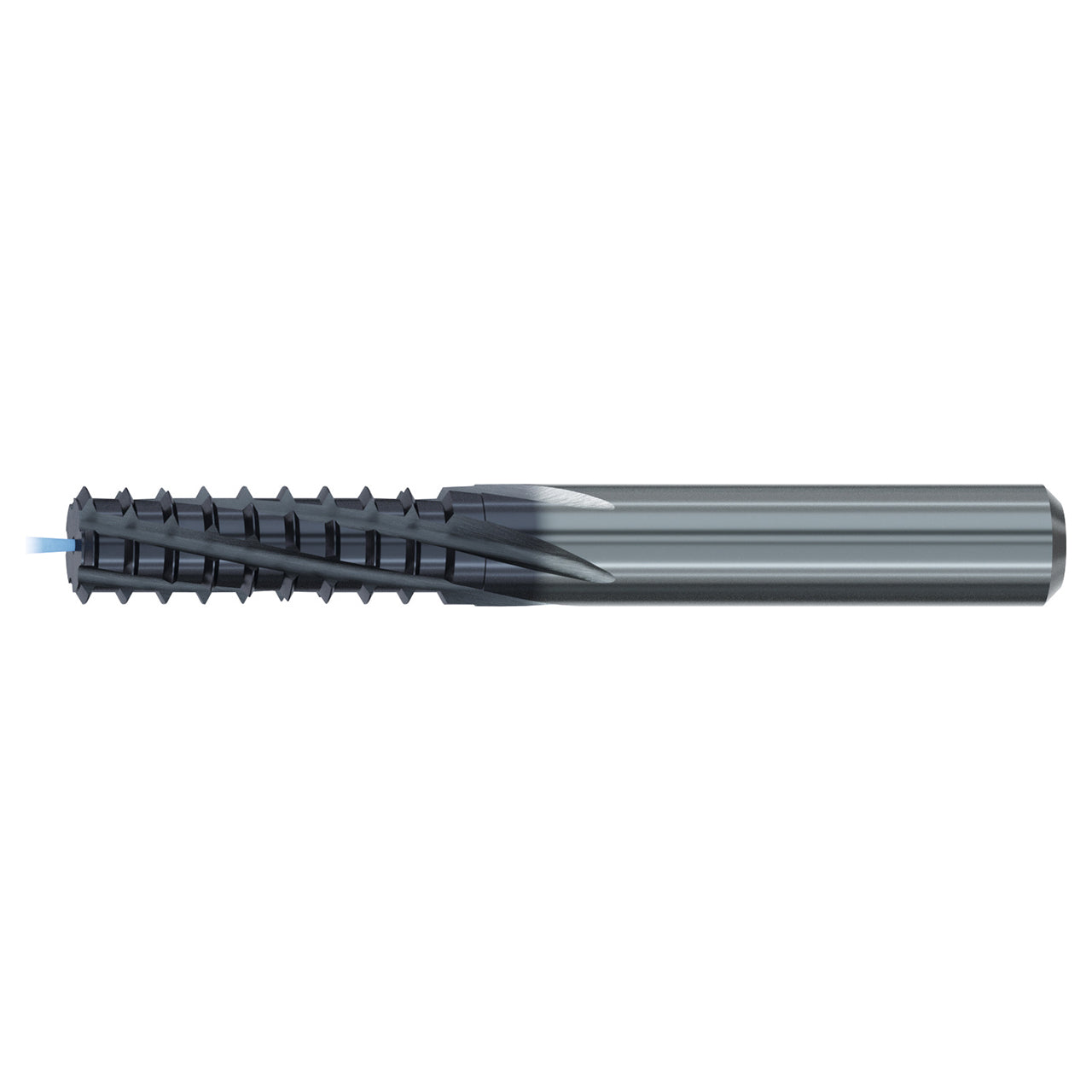

Features:
- For economical production of internal threads in a wide range of materials
- Alternating tooth rows reduce axial force
- Longer tool life when compared to traditional flute designs
- Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile
Product Specifications
| Manufacturer Part Number | GFB4573C.0276 |
| Cutting Diameter (mm) | 8.70mm |
| Thread Size | ≥M10x1 |
| Thread Diameter Size | ≥M10 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.00mm |
| Overall Length (mm) | 78.00mm |
| Flute Length (mm) | 15.50mm |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 2.5xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN-86 |
| Tool Type | VARIO - Skip Tooth |
| Application | Thread Milling |
| Product Type | Thread Mill |
