Features:

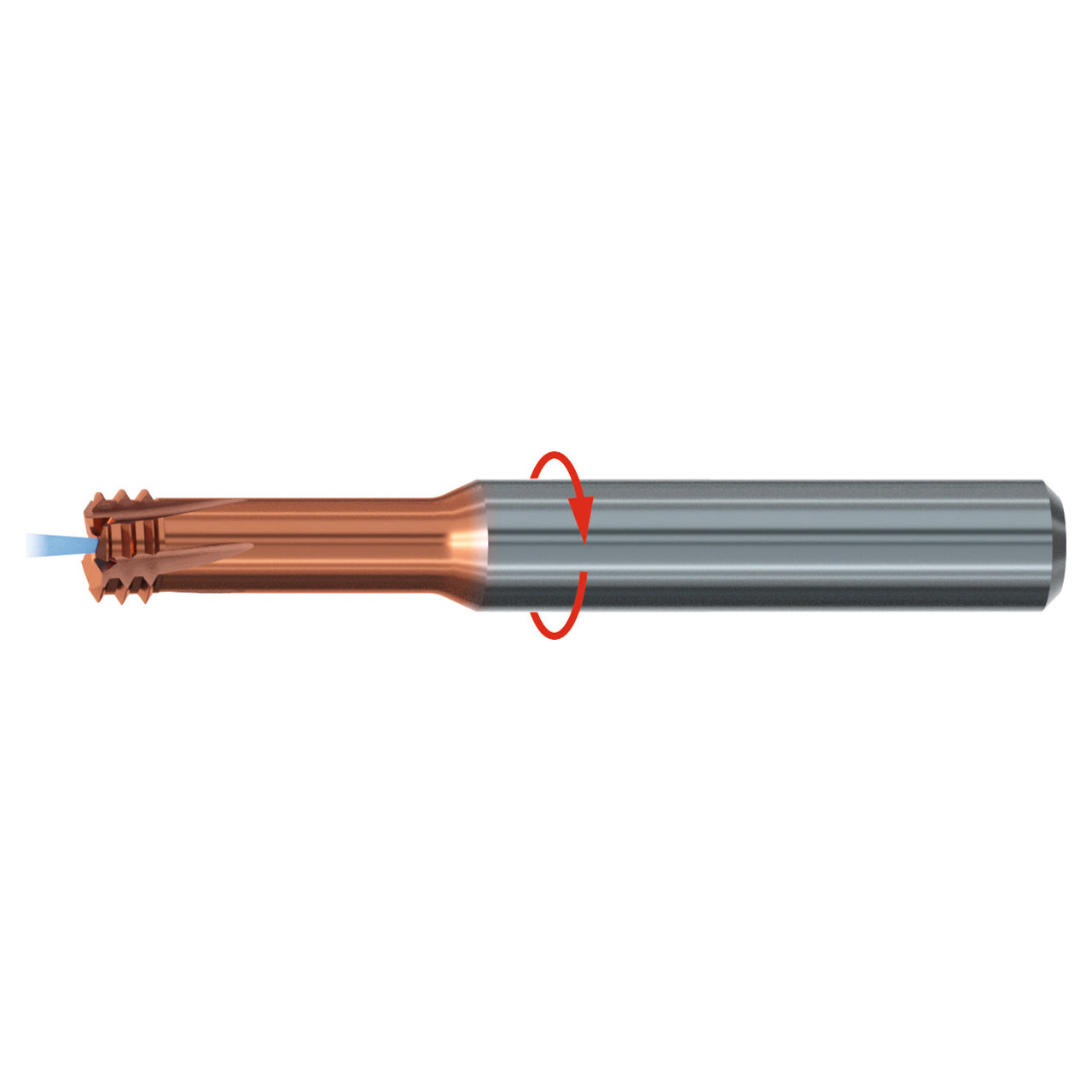

- Solid carbide circular thread mill with left hand flute design for additional stability
- Three tooth design with drilling, roughing and finishing in a single profile
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
Product Specifications
| Manufacturer Part Number | GF7B682B.5044 |
| Cutting Diameter (mm) | 6.37mm |
| Thread Size | 5/16"-24" |
| Thread Diameter Size (Inch) | 5/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 24 TPI |
| Thread Length (mm) | 3.10mm |
| Overall Length (mm) | 58.00mm |
| Flute Length (mm) | 17.50mm |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR-89 |
| Tool Type | THRILLER / AERO |
| Application | Drill & Thread Mill |
| Product Type | Thread Milling Cutter |
