Features:

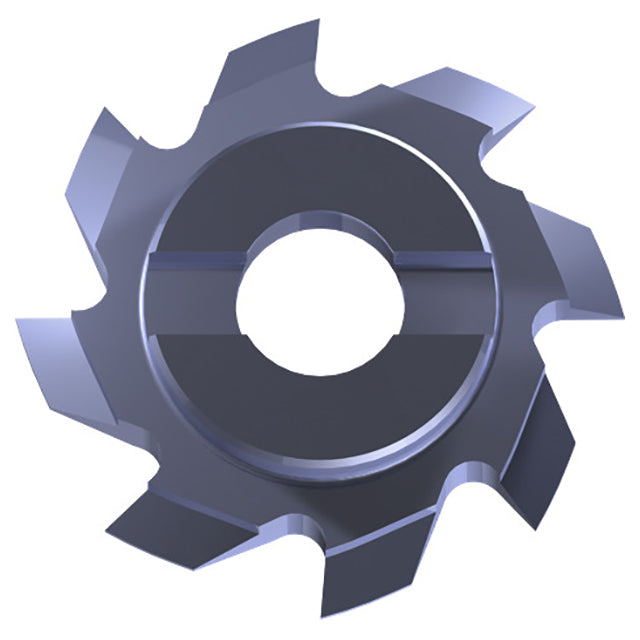

- ZIRK-GF one face insert for large diameter internal threading
- Circular carbide face inserts for internal threads
- One tool for multiple thread sizes and pitches Replaceable, economical insert design
Product Specifications
| Manufacturer Part Number | GF65310A.9677 |
| Cutting Diameter (mm) | 9.90mm |
| Thread Diameter Size | A |
| Thread Standard | NPT |
| Thread per Inch (TPI) | 18 TPI |
| Number of Flute | 5 |
| Cutting Edge Material | Carbide |
| Coating | ALCR-T42 |
| Tool Type | ZIRK-GF Insert |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
