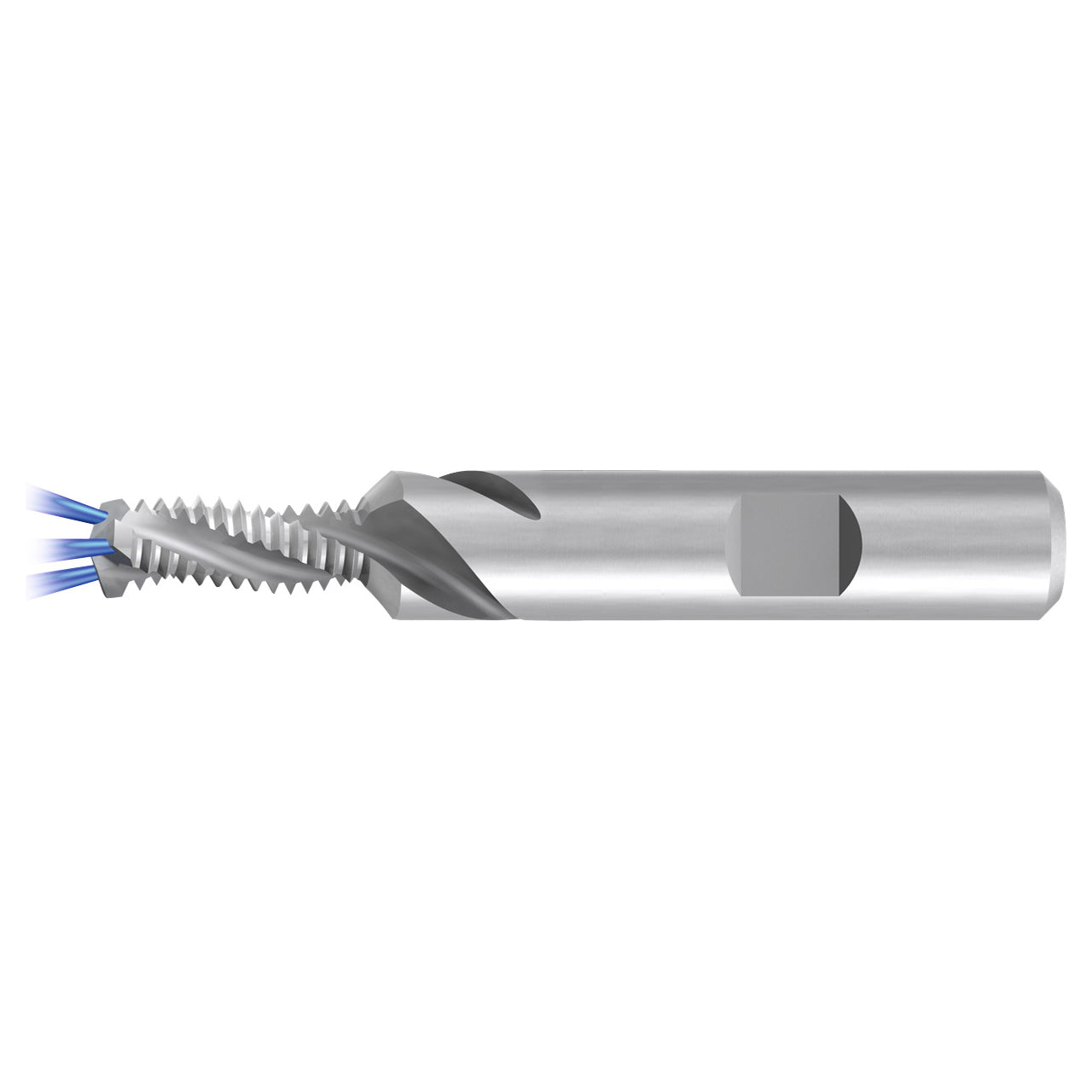

Features:
- For the production of internal threads
- 3 Flute for work in pre-cast threaded holes and solid material
Product Specifications
| Cutter Diameter (mm) | 4.8 mm |
| Pitch | 1 |
| Point Angle | 140 Degree |
| Size | M 6 |
| Thread Standard | M |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill/Thread/Chamfer |
| Type | BGF-Z3/Thriller |
| Length Group | 2.5 x D |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 65 mm |
| Flute Length (mm) | 15.1 mm |
| Flute Direction | Right Hand, Left Hand |
