Features:

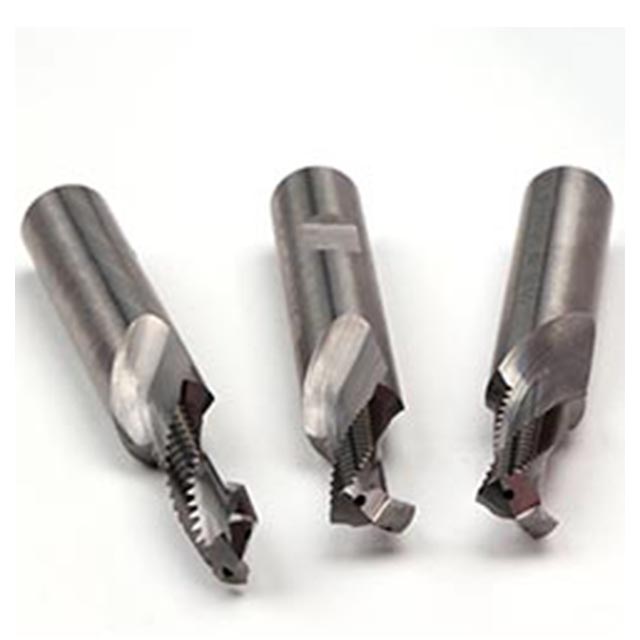

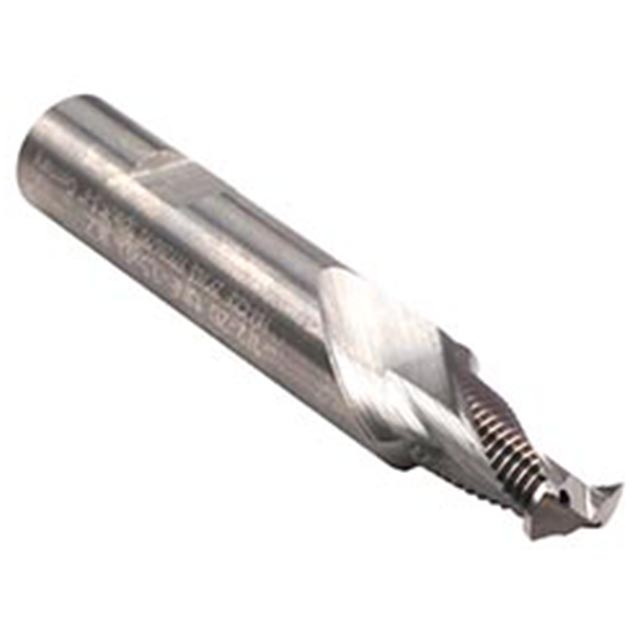

- Combination drill, countersink & thread mill. Coolant fed design
- Combine three operations into one tool. Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 5.26 mm |
| Pitch | 28 |
| Point Angle | 140 Degree |
| Size | 1/4" |
| Thread Standard | UNF |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill/Thread/Chamfer |
| Type | BGF-Z2/Thriller |
| Length Group | 1.5 x D |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 62 mm |
| Flute Length (mm) | 9.16 mm |
| Flute Direction | Right Hand, Left Hand |
