Features:

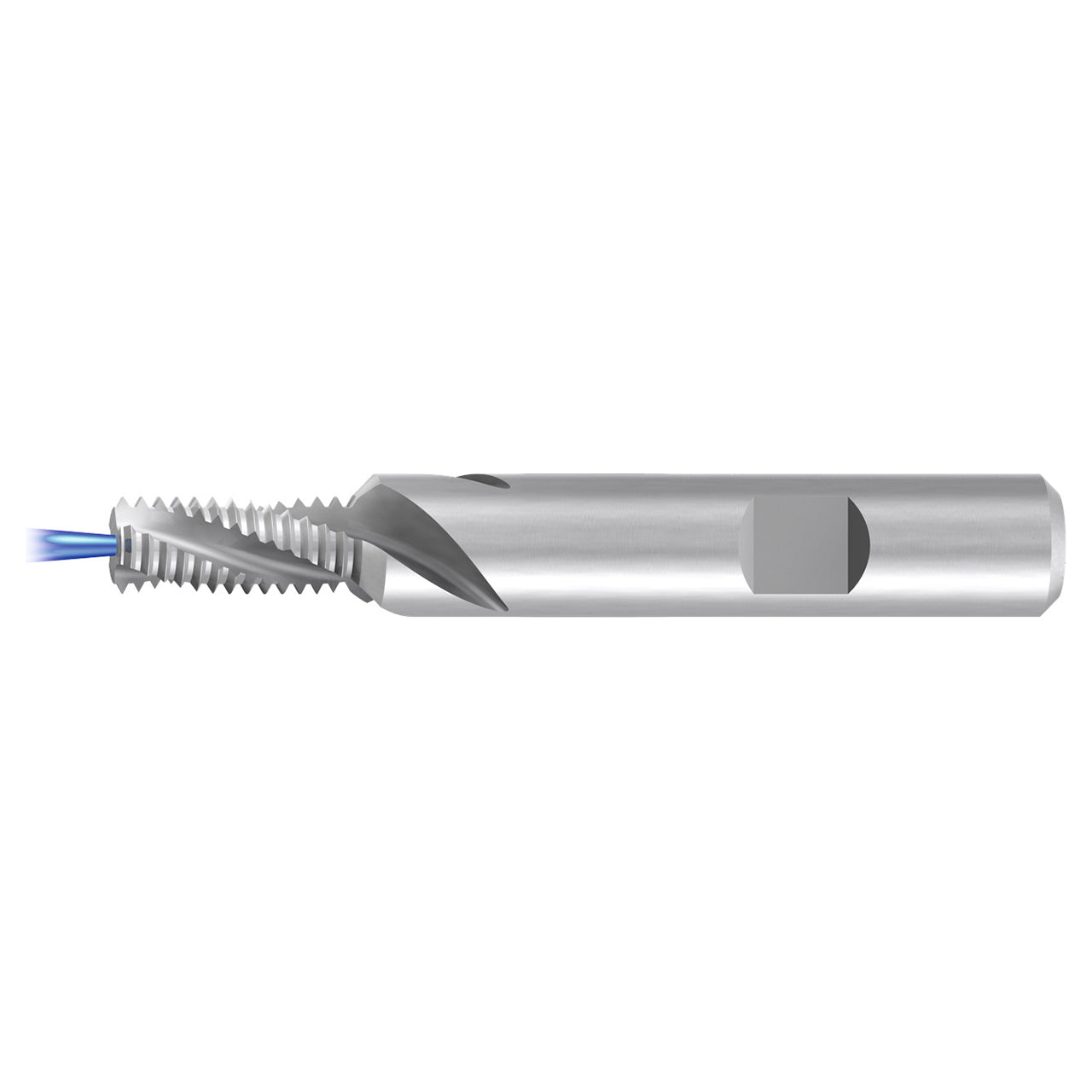

- Combination countersink & thread mill. Coolant fed design
- Combine two operations into one tool. Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 4 mm |
| Pitch | 0.8 |
| Size | M 5 |
| Thread Standard | M |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GSF-Thread & Countersink |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 55 mm |
| Flute Length (mm) | 10.8 mm |
| Flute Direction | Right Hand, Left Hand |
