Features:

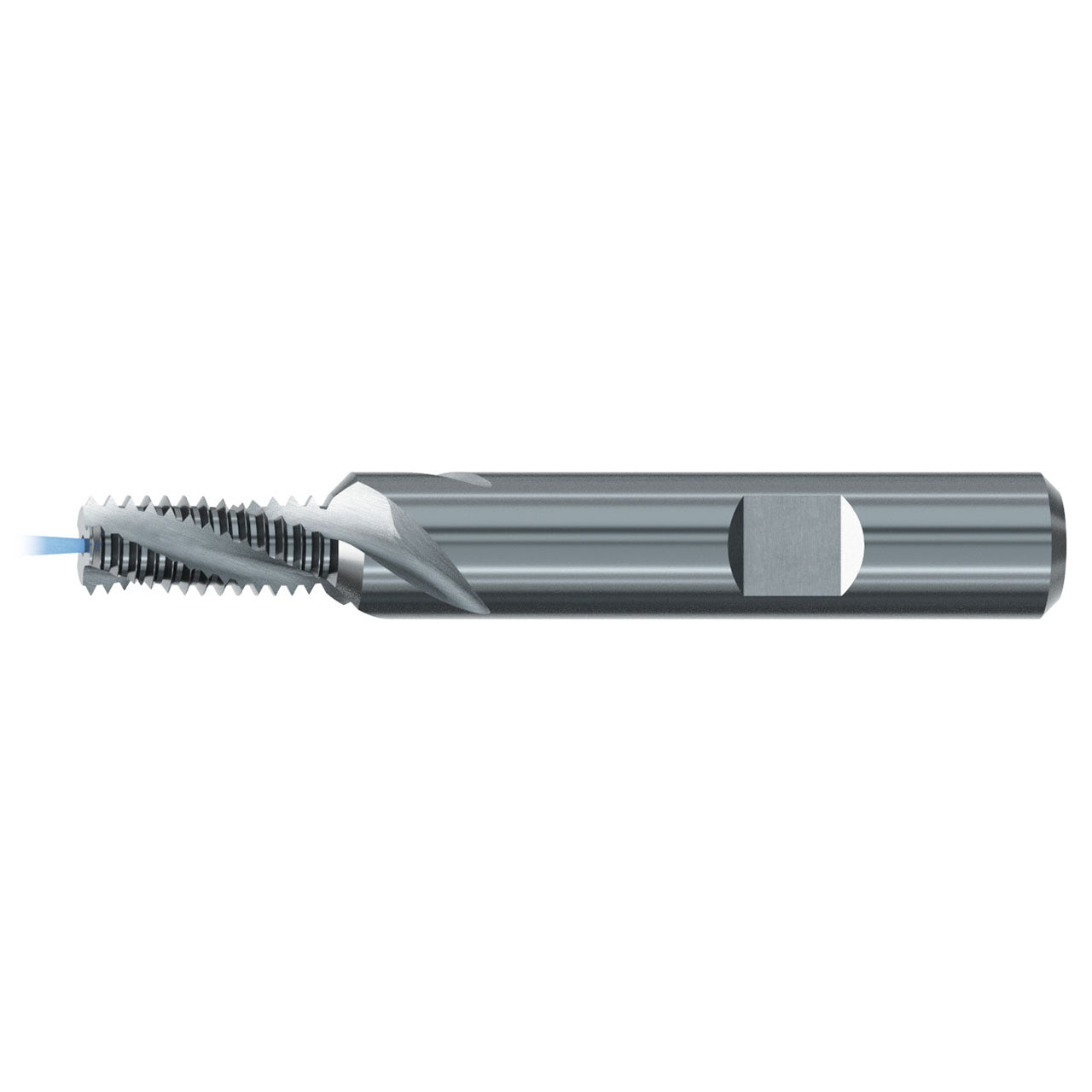

- Combination countersink & thread mill.
- Axial coolant fed channel for enhanced chip removal rates
- This tool is for a specific pitch with corrected thread profile
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF322101.0277 |
| Thread Size | M 10x1.25 |
| Thread Diameter Size | M 10 |
| Overall Length (mm) | 80.00mm |
| Flute Length (mm) | 15.70mm |
| Length Group | 1.5xD |
| Number of Flutes | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Thread Standard | MF |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | Bright |
| Product Type | Thread Mill |
