Features:

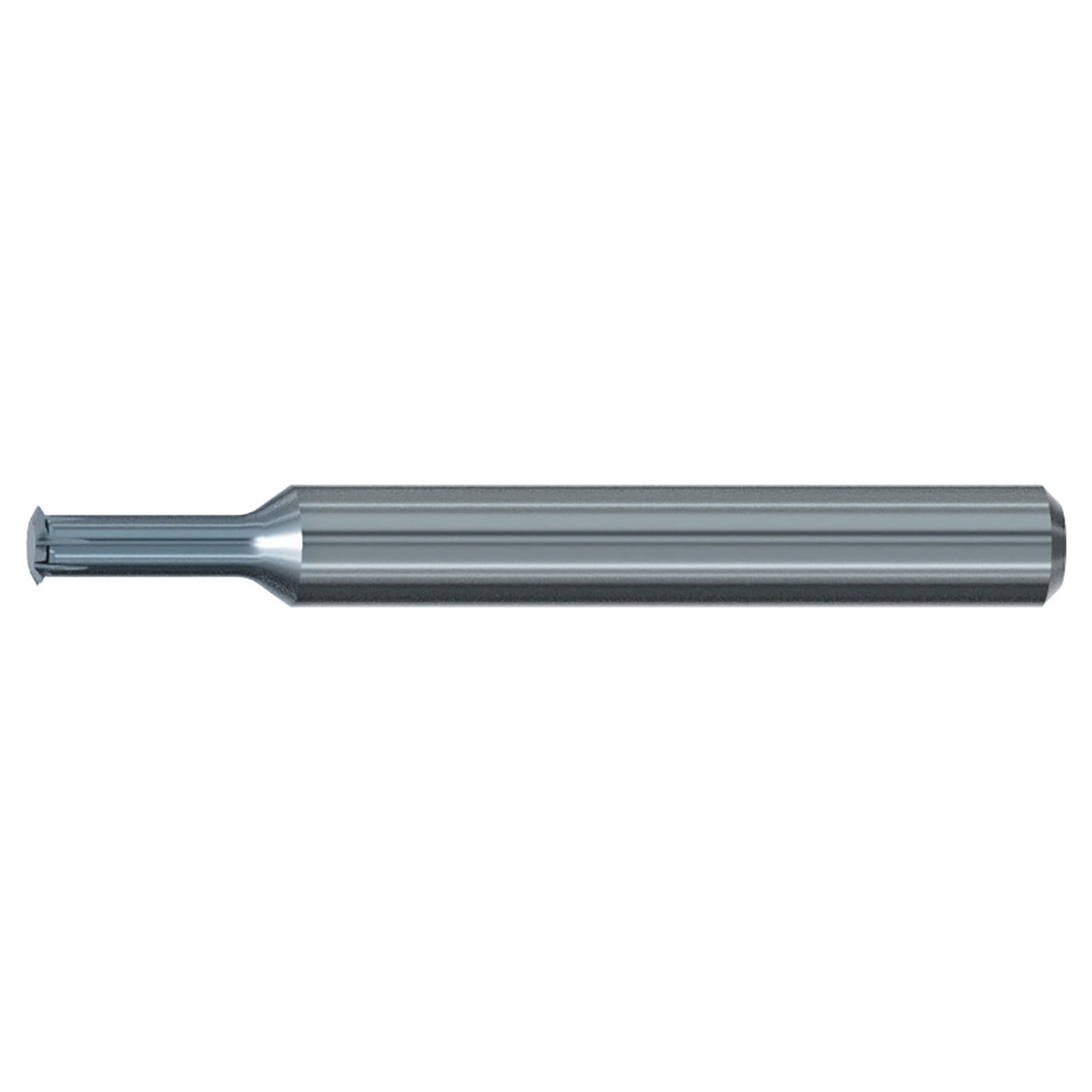

- Single plane solid carbide circular thread mill
- One tool can thread more than one thread size and pitch
- Full bottoming threads to within 1 pitch
- Eliminate the need for multiple tool holder pockets
Product Specifications
| Manufacturer Part Number | GF293746.0016 |
| Cutting Diameter (mm) | 1.18mm |
| Thread Size | M 1.6 x0.35 |
| Thread Diameter Size | M 1.6 |
| Thread Standard | M |
| Thread Pitch (mm) | 0.35mm |
| Overall Length (mm) | 39.00mm |
| Flute Length (mm) | 3.10mm |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 2xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Cutting Edge Material | Carbide |
| Coating | TICN |
| Tool Type | THREADS-ALL |
| Application | Thread Milling |
| Product Type | Thread Mill |
