Features:

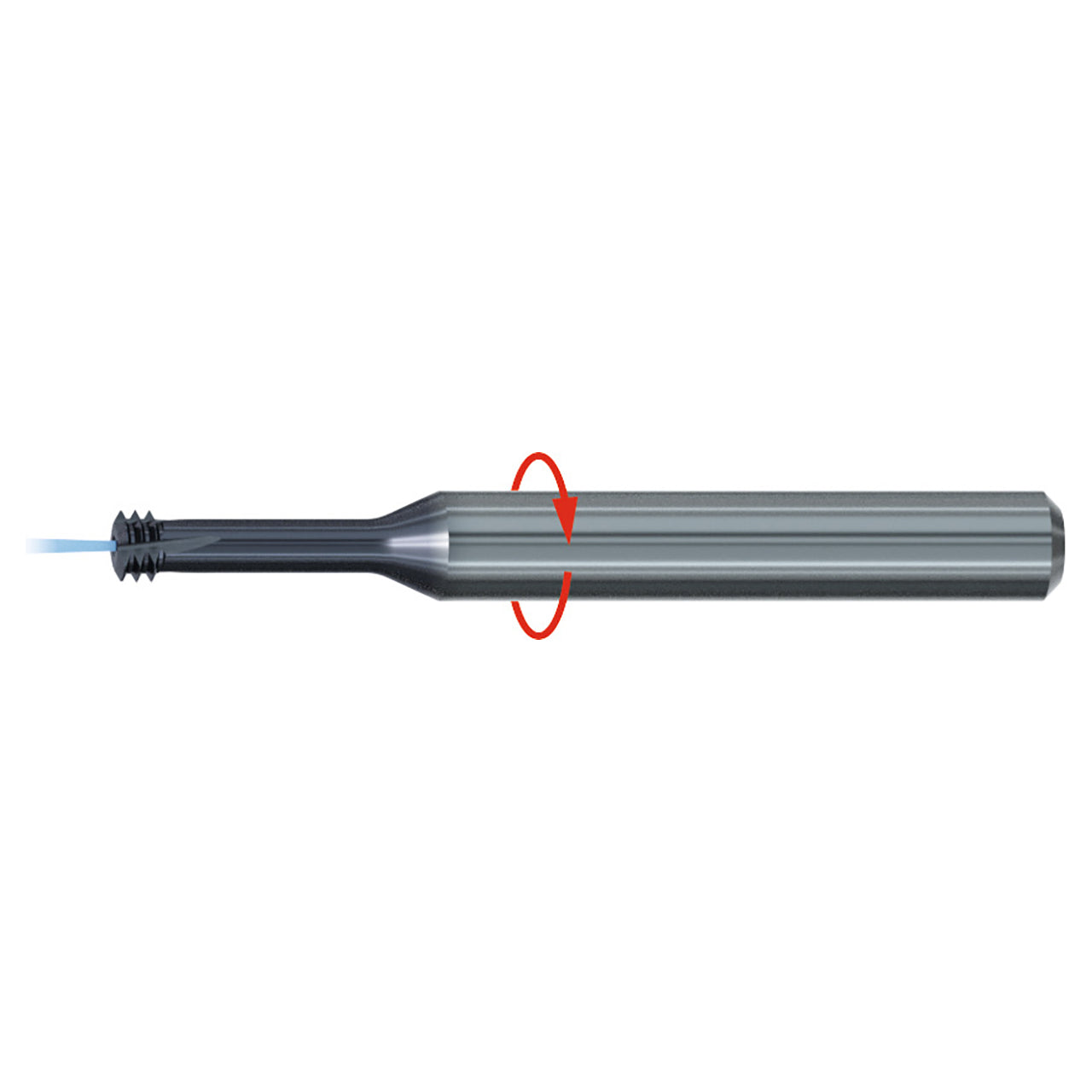

- Solid carbide circular thread mill with left hand flute design for additional stability
- Three tooth design with roughing and finishing in a single profile
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
Product Specifications
| Manufacturer Part Number | GF26A729.5044 |
| Cutting Diameter (Decimal Inch) | 0.260" |
| Thread Size | 5/16" or 3/8" -24" |
| Thread Diameter Size (Inch) | 5/16" or 3/8" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 24 TPI |
| Overall Length (Decimal Inch) | 2.283" |
| Flute Length (Decimal Inch) | 0.392" |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Cutting Edge Material | Carbide |
| Coating | TIALN-T14 |
| Tool Type | THREADS-ALL / AERO |
| Application | Thread Milling |
| Product Type | Thread Mill |
