Features:

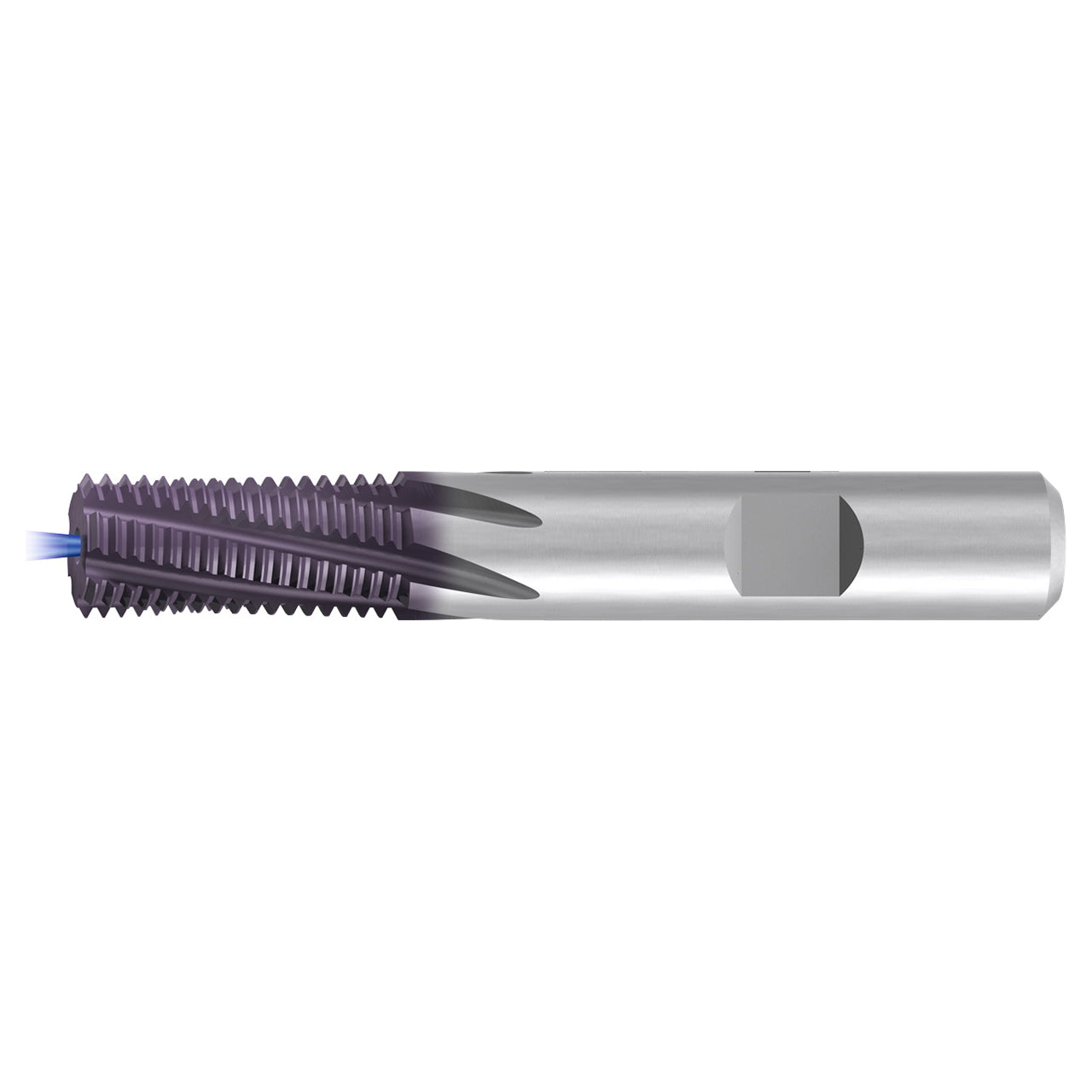

- GF-Z with increased flute count and optimized cutting geometry. For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutter Diameter (mm) | 11.9 mm |
| Pitch | 2 |
| Size | 16 min |
| Thread Standard | M/MF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GF-Z |
| Coolant Fed | Axial |
| Coating/Finish | TICN |
| Material | Carbide |
| Number of Flutes | 6 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 80 mm |
| Flute Length (mm) | 16.1 mm |
| Flute Direction | Right Hand, Left Hand |
