Features:
- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
- For machining of external threads
- Cutter diameter should be smaller than thread diameter
Product Specifications

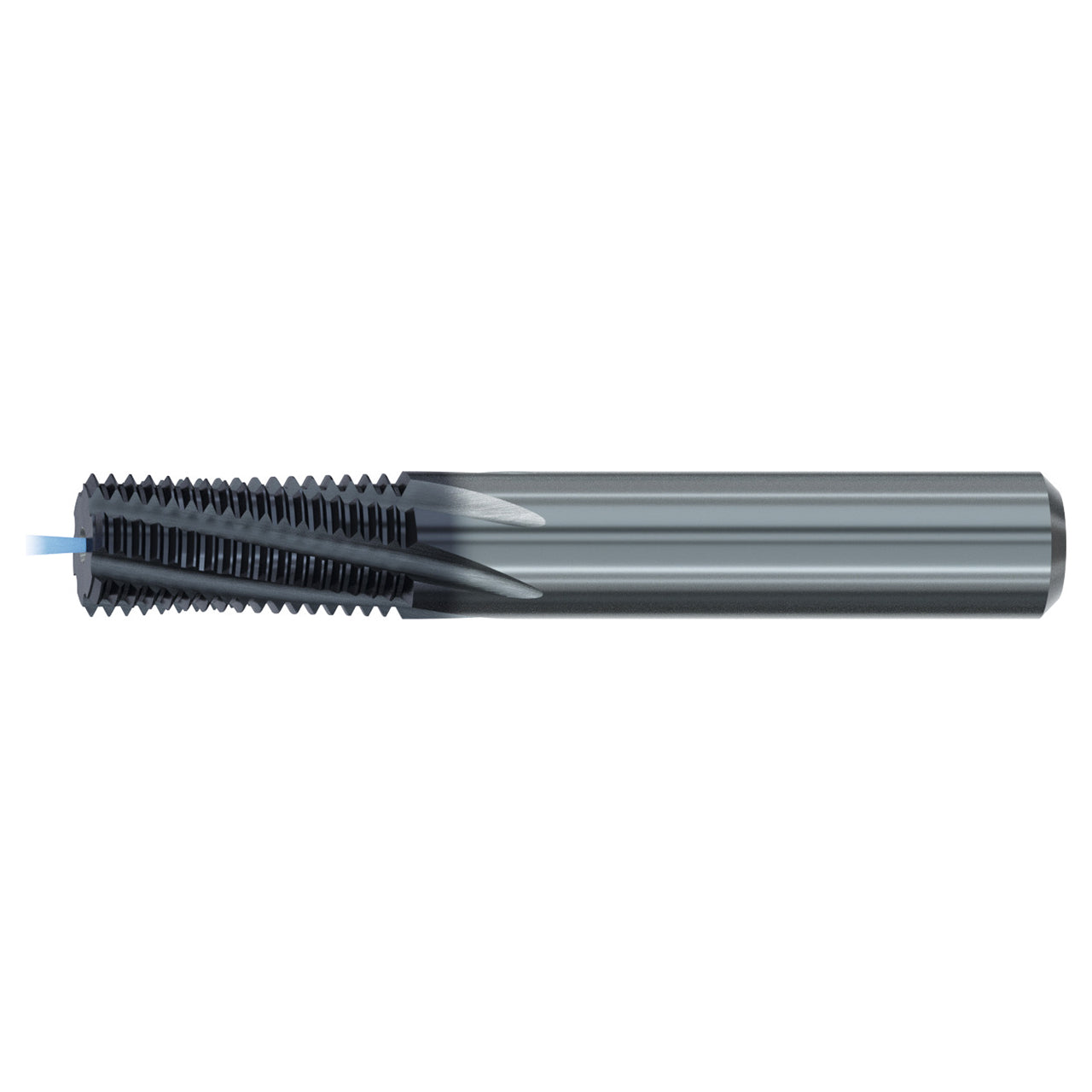

| Manufacturer Part Number | GF16496C.9582 |
| Cutting Diameter (Decimal Inch) | 0.390" |
| Cutting Diameter (mm) | 9.90mm |
| Thread Standard | UNC/UNF |
| Thread per Inch (TPI) | 16 TPI |
| Thread Length (Decimal Inch) | 20.000" |
| Overall Length (Decimal Inch) | 20.000" |
| Overall Length (mm) | 70.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiAlN-86 |
| Tool Type | VARIO Z - External |
| Application | Thread Milling |
| Product Type | Thread Mill |
