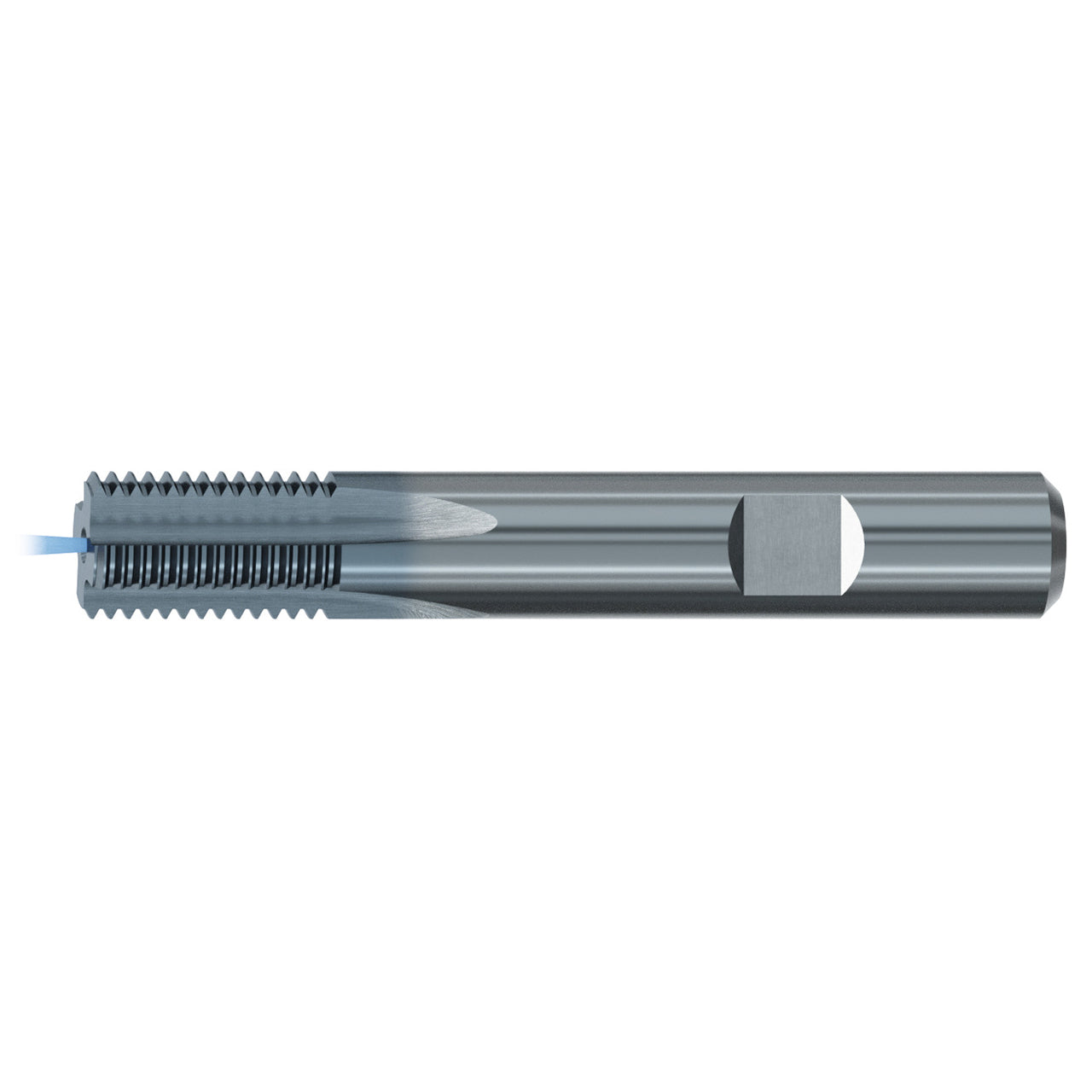

Features:
- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
- For production of internal threads
- In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF163216.9757 |
| Cutting Diameter (mm) | 9.90mm |
| Thread Size | LK M 14x1 |
| Thread Diameter Size | LK M 14 |
| Overall Length (mm) | 70.00mm |
| Flute Length (mm) | 16.40mm |
| Number of Flutes | 4 |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Thread Standard | LK-M |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | TiCN |
| Product Type | Thread Mill |
