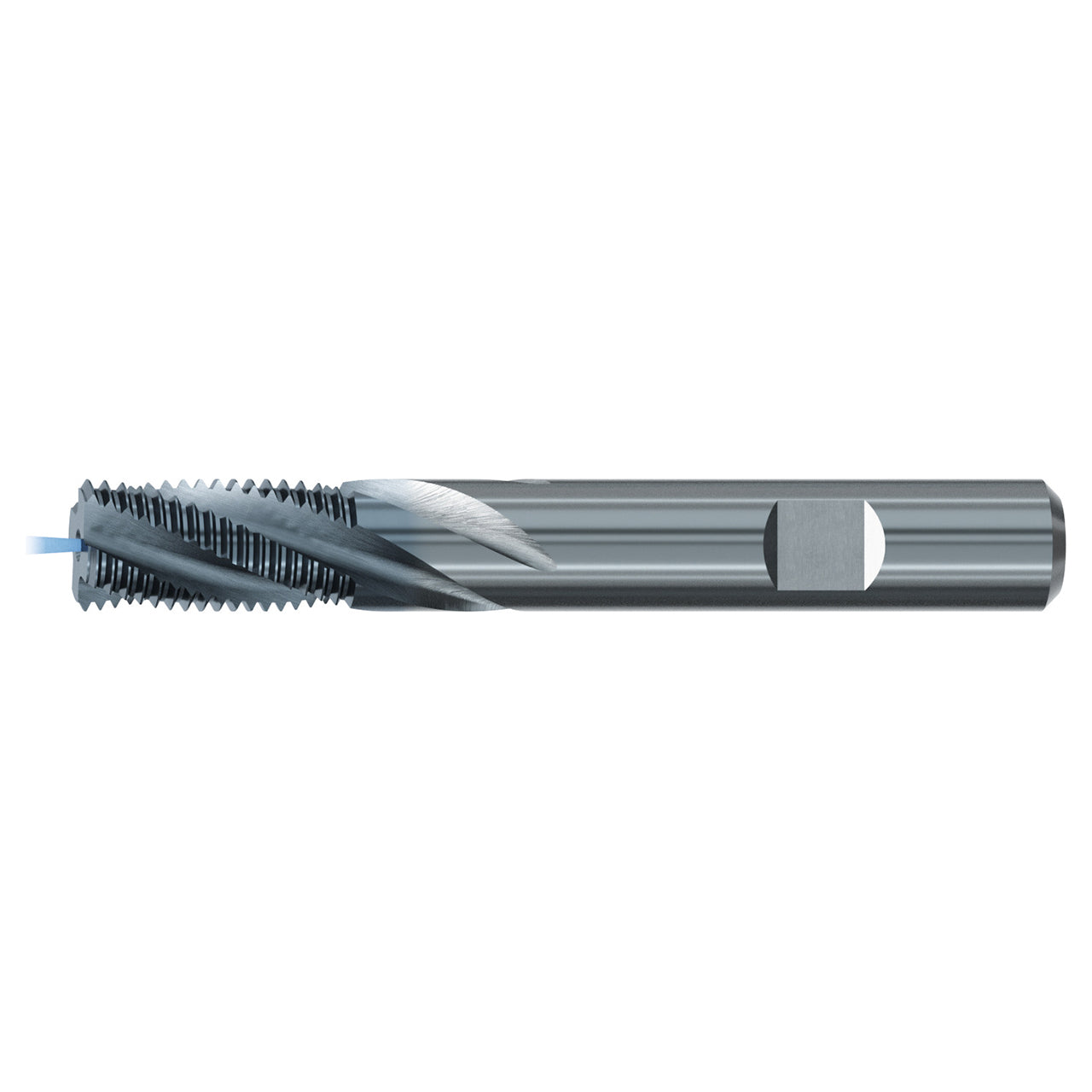

Features:
- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
- For production of internal threads
- In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF162336.9516 |
| Cutting Diameter (mm) | 11.90mm |
| Thread Size | ≥M18x2 |
| Thread Diameter Size | ≥M18 |
| Thread Standard | M/MF |
| Thread Pitch (mm) | 2.00mm |
| Overall Length (mm) | 90.00mm |
| Flute Length (mm) | 26.90mm |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | Long Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TICN |
| Tool Type | VARIO Z |
| Application | Thread Milling |
| Product Type | Thread Mill |
