Features:

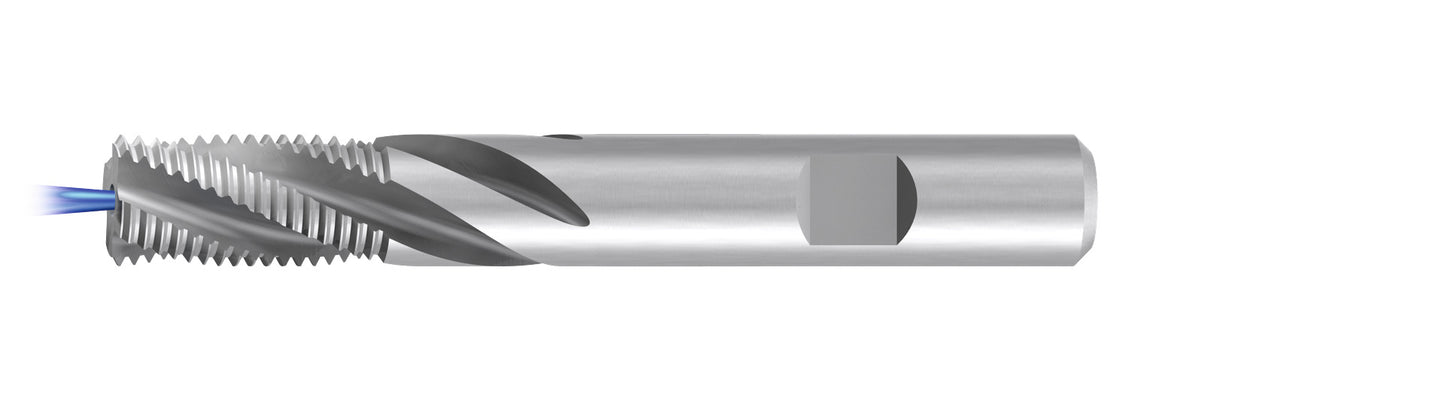

- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutter Diameter (mm) | 11.9 mm |
| Pitch | 1.5 |
| Size | 16 min |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | SHUR-THREAD |
| Length Group | Long |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 26.1 mm |
| Flute Direction | Right Hand, Left Hand |
