Features:

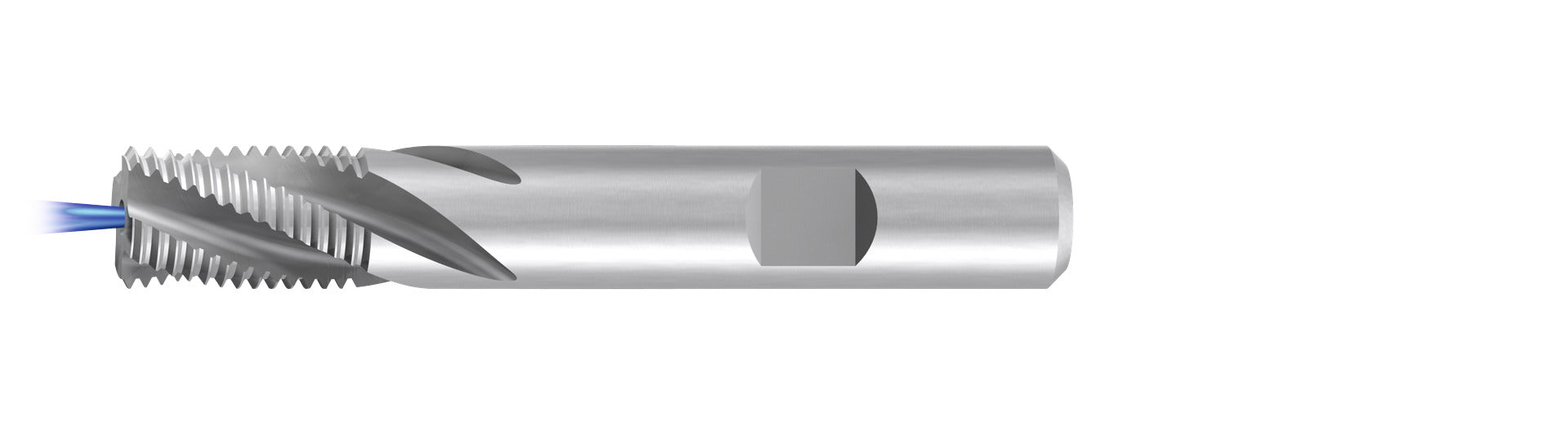

- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutter Diameter (mm) | 15.9 mm |
| Pitch | 14 |
| Size | G 1/2 |
| Thread Standard | BSPP |
| Applicable Material | Steel, Cast Iron, Aluminum,Titanium |
| Application | Full Profile |
| Type | GF |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 16 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 90 mm |
| Thread Length (mm) | 26.303 |
| Flute Direction | Right Hand, Left Hand |
