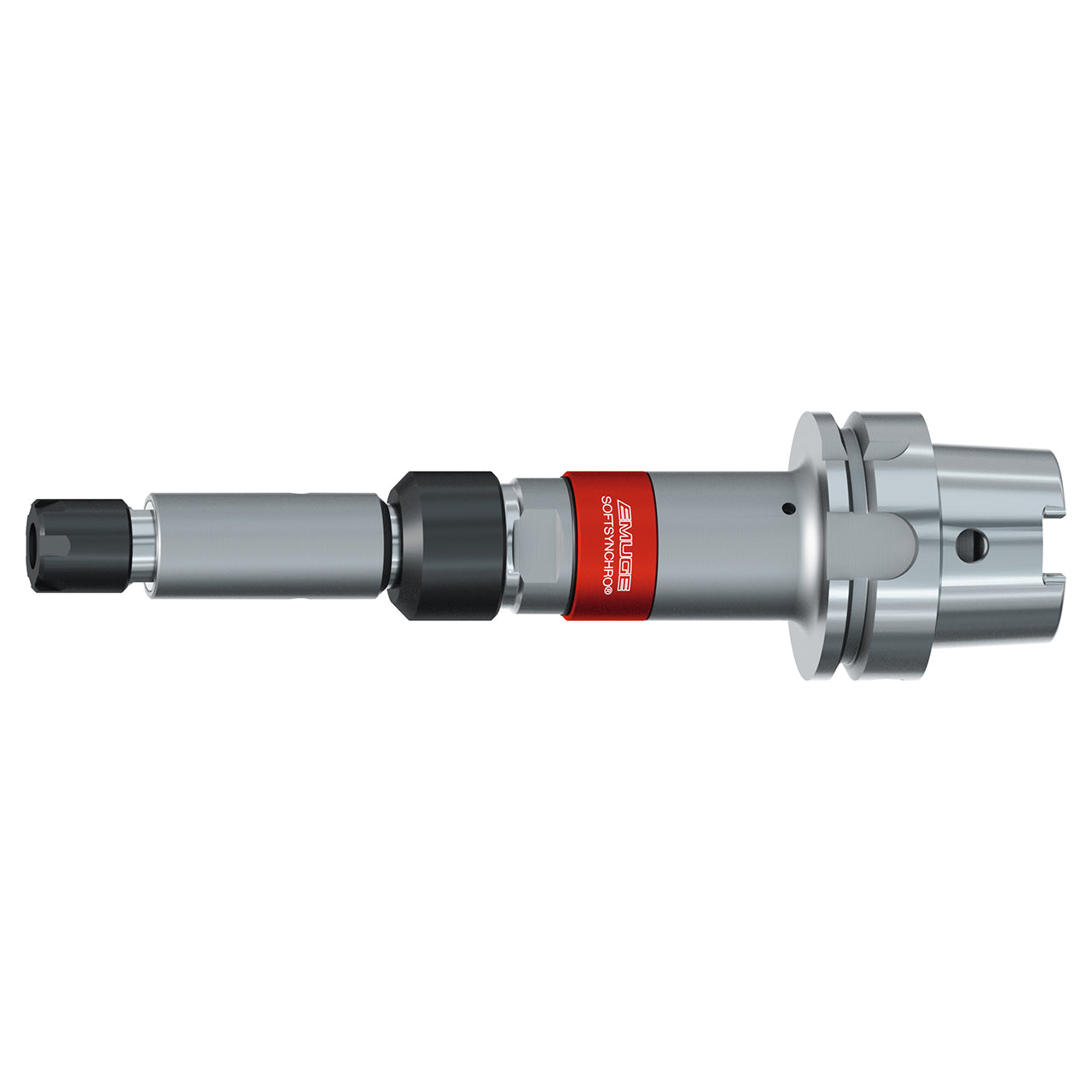

Features:
- Softsynchro Xtension style extends the effective reach of the tool in an adjustable design
- Provides minimum tap length compensation for rigged tapping
- Patented elastomer spring constructions separates the tap from the spindle
- Accommodates Tap sizes M4-M12 (#8-7/16")
Product Specifications
| Manufacturer Part Number | F3801C04.1.260 |
| Connection Diameter Workpiece Side (mm) | 4.5-9mm |
| Nose Diameter (mm) | 22.00mm |
| Projection Length (mm) | 266.50mm |
| Dimensional Standards | DIN 69893-1 |
| Tool Cylindrical - Shank Style | HSK-A63 |
| Shank Standard | DIN 69893-1 |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Tool Type | Rigid Tap Holder |
| Application | Tapping Tool Holder |
| Product Type | Collet Holder |
