Features:

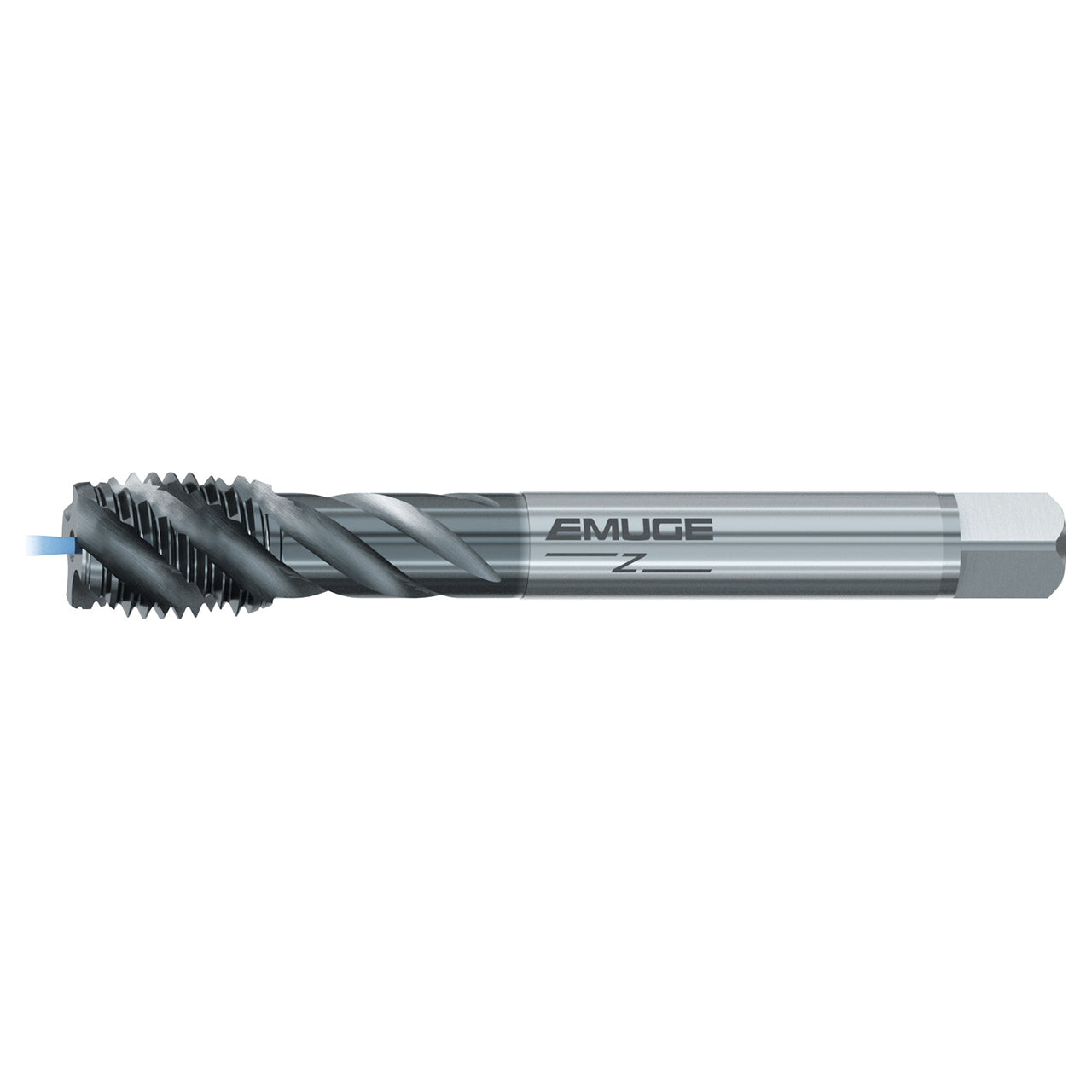

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TIN coated for additional heat and wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU999400.5018 |
| Thread Size | 1" -8" |
| Thread Diameter Size (Inch) | 1" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 8 TPI |
| Tap Square (Decimal Inch) | 0.600" |
| Thread Length (Decimal Inch) | 1.181" |
| Overall Length (Decimal Inch) | 6.299" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.800" |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Enorm Z |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
