Features:

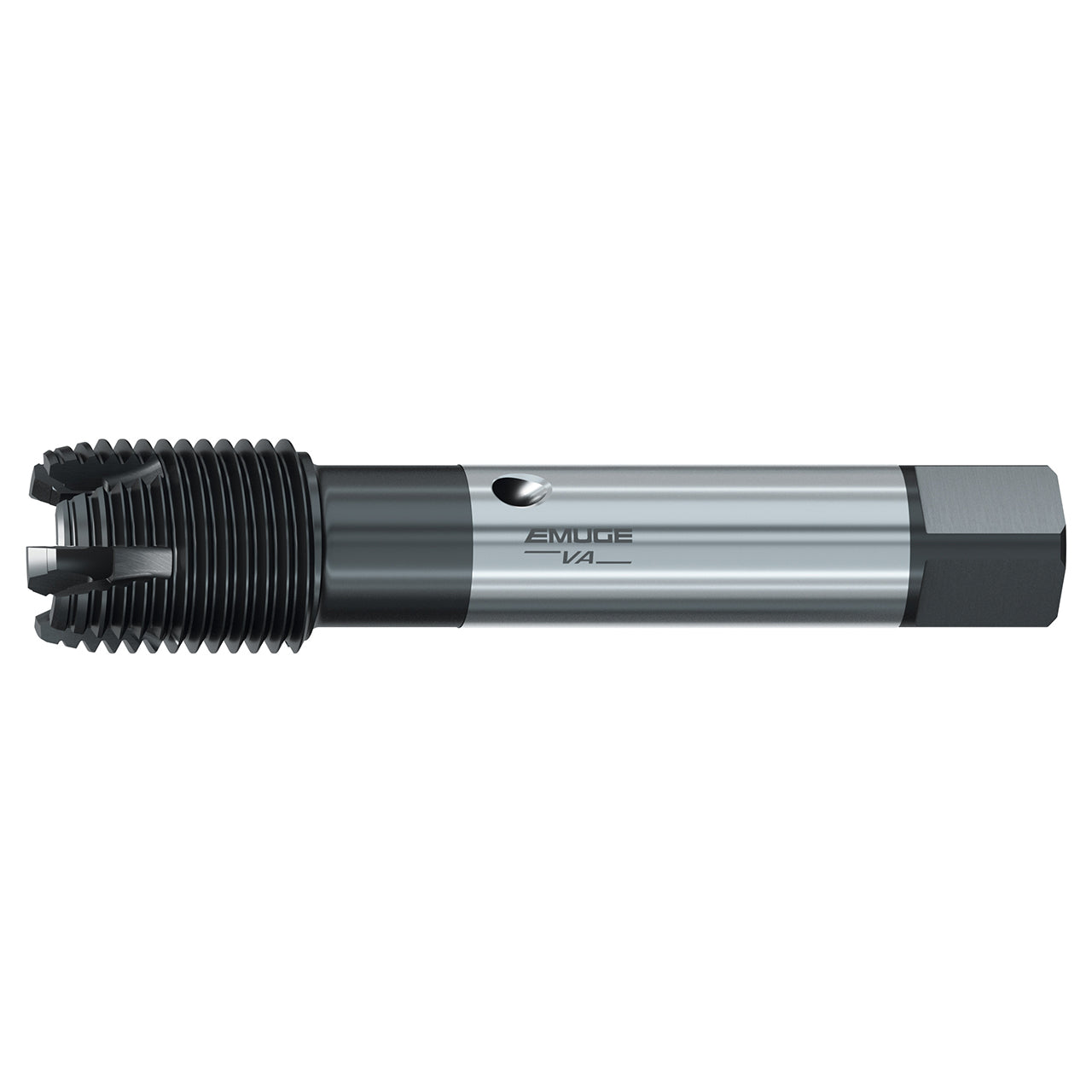

- Specially designed large size tapping with a cutting crown for excellent self-guidance when beginning to cut.
- Frontal recess (bell-shaped chip collector) for receiving the chip material in blind hole threads
- Increased profile clearance angle reduces friction and thus the inclination to cold pressure welds
- Preferably to be used with paste lubrication!
Product Specifications
| Manufacturer Part Number | CU803011.5023 |
| Thread Size | 1-3/4"-5 |
| Thread Diameter Size | 1-3/4" |
| Thread Per Inch (TPI) | 5 TPI |
| Tap Square (Decimal Inch) | 1.072" |
| Thread Length (Decimal Inch) | 2.283" |
| Overall Length (Decimal Inch) | 8.661" |
| Length Group | Extra Length |
| Number of Flutes | 6 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNC |
| Thread Tolerance Class | 3BX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | NE2 |
| Product Type | Straight Flute Tap |
