Features:

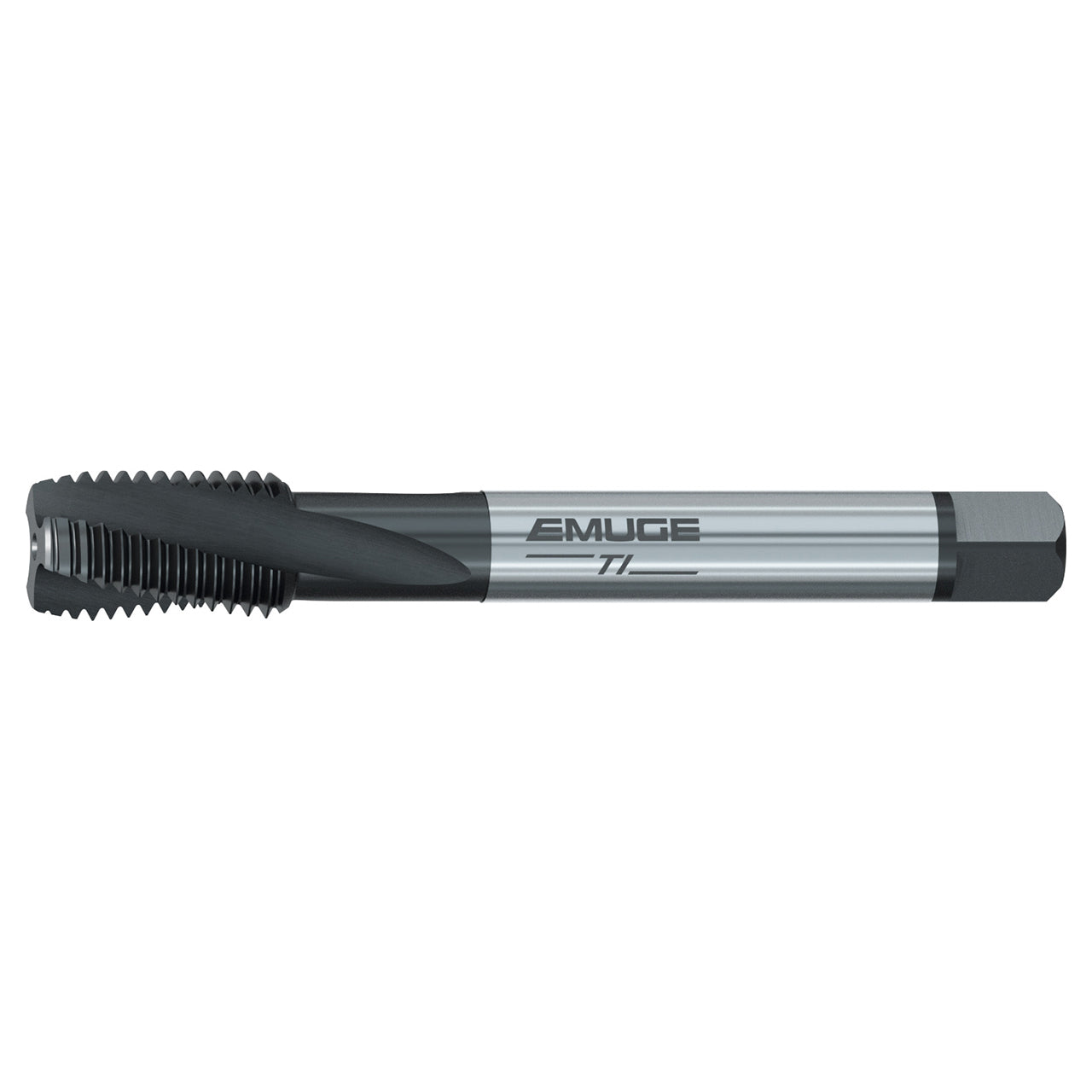

- Rekord D-TI tap is a slow spiral design for blind holes
- Best suited for titanium and high tensile strength materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU456001.5017 |
| Thread Size | 7/8"-9" |
| Thread Diameter Size (Inch) | 7/8" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 9 TPI |
| Tap Square (Decimal Inch) | 0.523" |
| Thread Length (Decimal Inch) | 1.259" |
| Overall Length (Decimal Inch) | 5.512" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.697" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | NT2 |
| Tool Type | Rekord D-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
