Features:

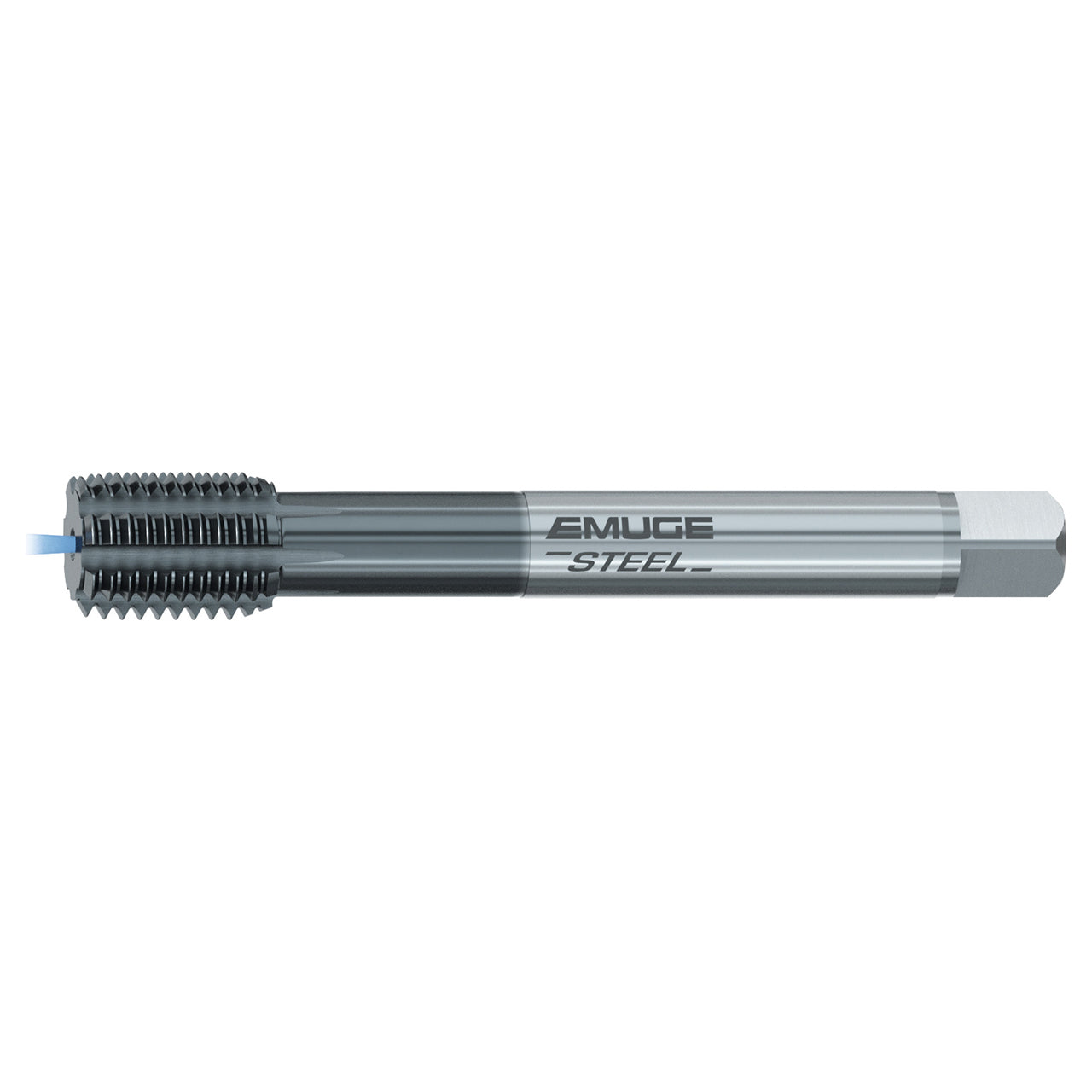

- The InnoForm Steel-H roll form tap is designed for high tensile strength materials
- Short threaded part and special polygon shape for less torque
- TICN coated for additional wear resistance
- IKZ - Axial exit coolant holes improve thread quality
Product Specifications
| Manufacturer Part Number | CU386F00.5017 |
| Thread Size | 7/8"-9" |
| Thread Diameter Size (Inch) | 7/8" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 9 TPI |
| Tap Square (Decimal Inch) | 0.523" |
| Thread Length (Decimal Inch) | 1.111" |
| Overall Length (Decimal Inch) | 5.512" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.697" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
