Features:

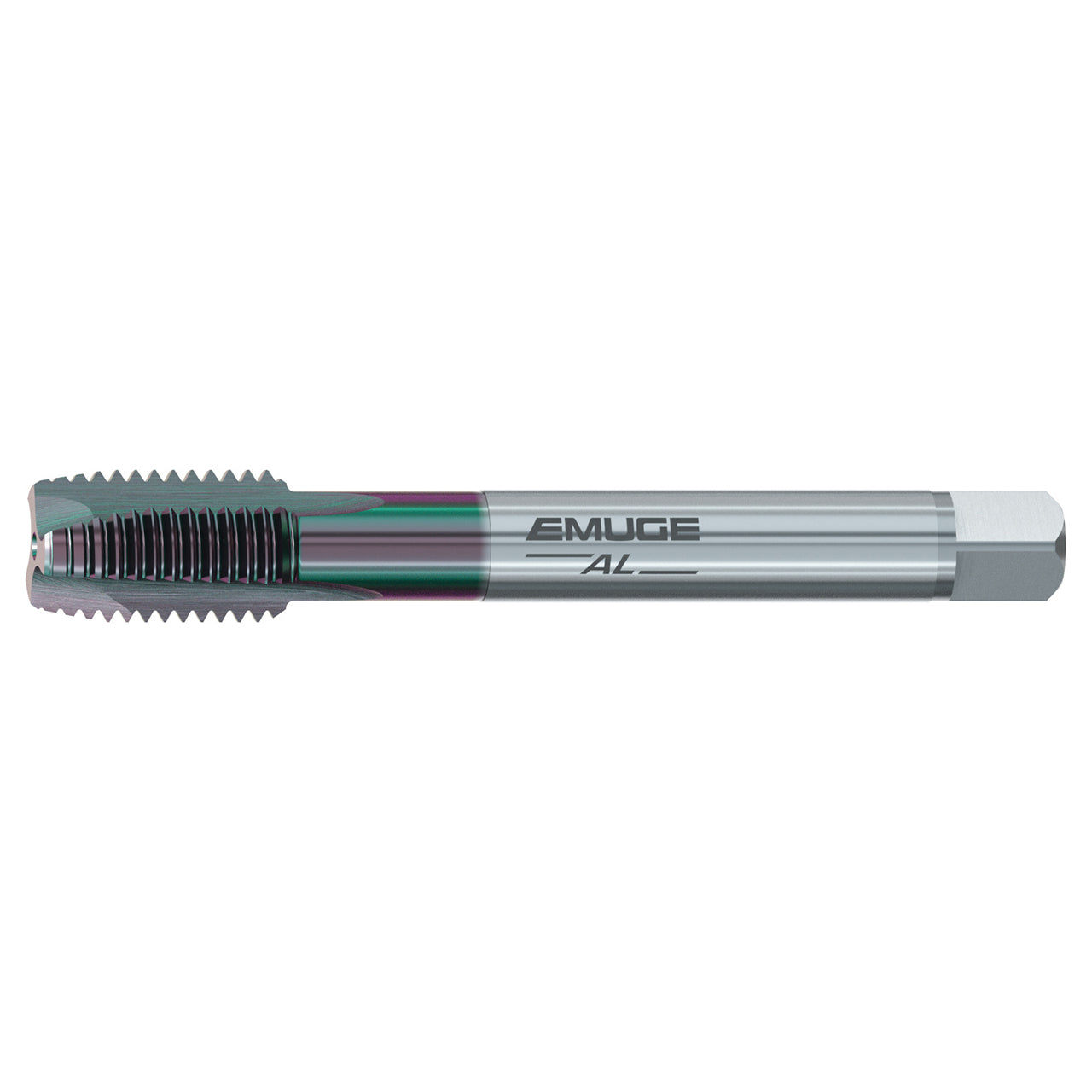

- The Enorm AL design is typically for blind hole threads in long chipping materials.
- Higher rake angle provides better shearing action for maximum tool life
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU203G10.5621 |
| Thread Size | 1/2"-13 |
| Thread Diameter Size | 1/2" |
| Thread Per Inch (TPI) | 13 TPI |
| Tap Square (Decimal Inch) | 0.242" |
| Thread Length (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 4.331" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | STI-UNC |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
