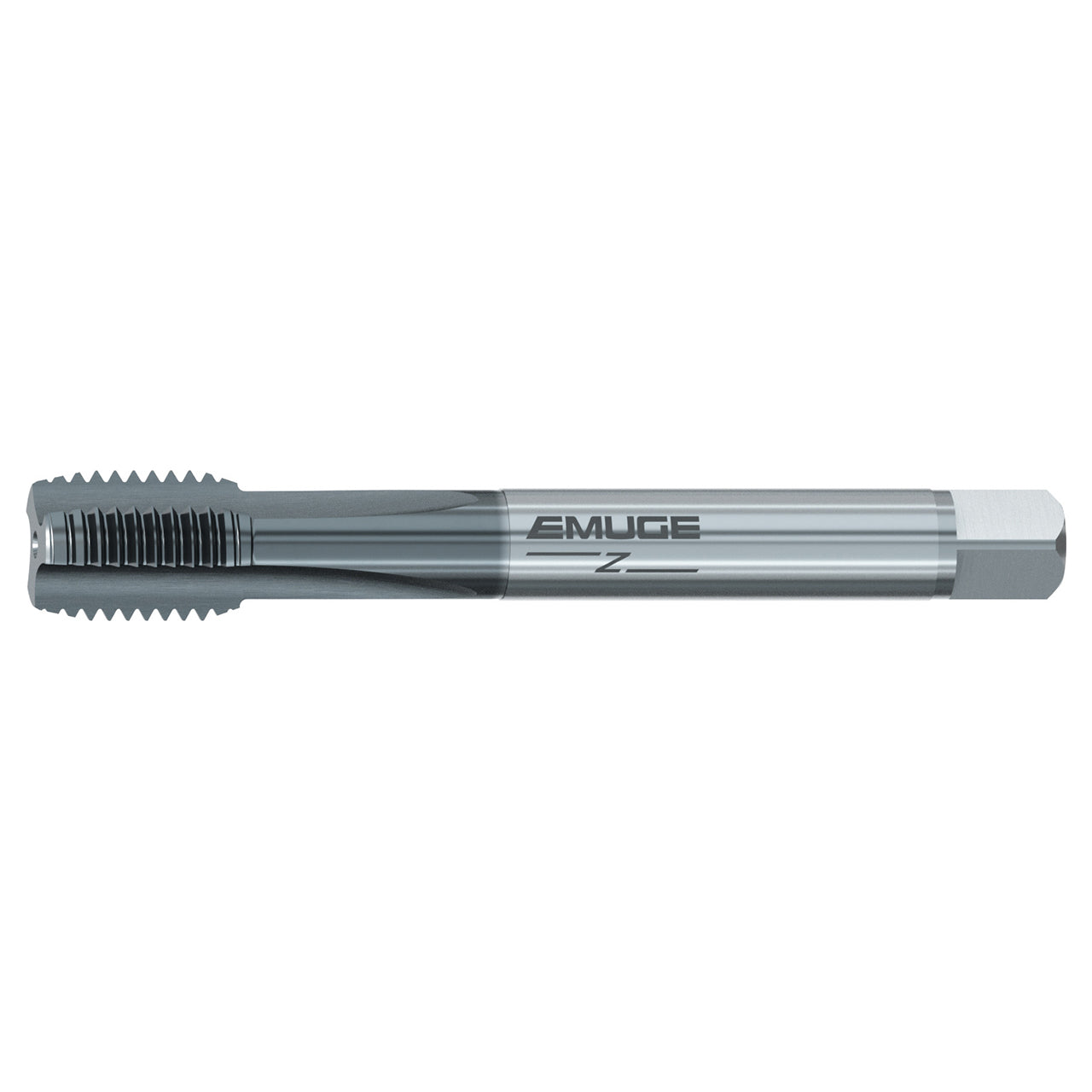

Features:
- Rekord A-Z is a straight flute for short chipping materials
- Blind and through hole applications
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU109401.5017 |
| Thread Size | 7/8"-9" |
| Thread Diameter Size (Inch) | 7/8" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 9 TPI |
| Tap Square (Decimal Inch) | 0.523" |
| Thread Length (Decimal Inch) | 1.063" |
| Overall Length (Decimal Inch) | 5.512" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.697" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord A-Z |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
