Features:

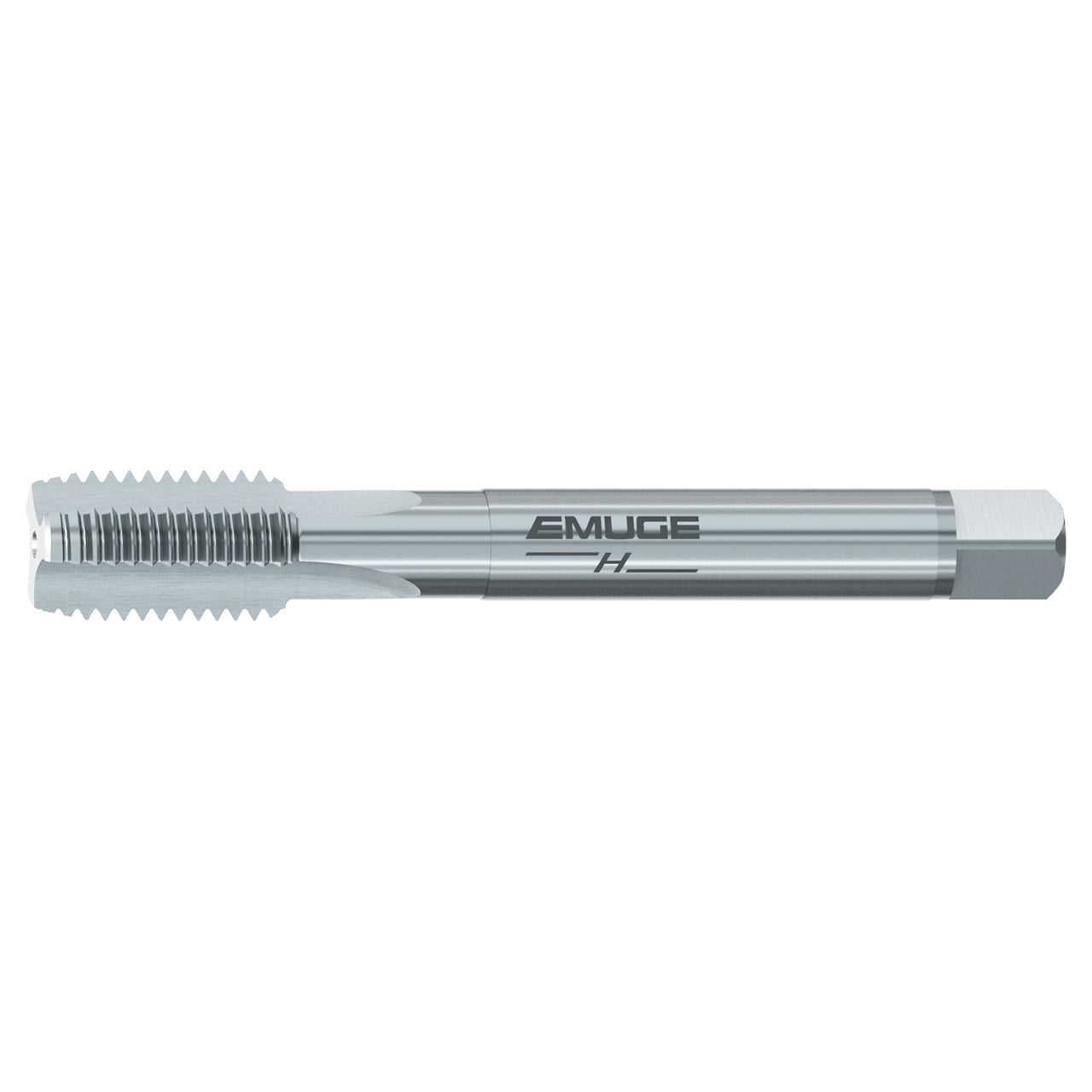

- Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels)
- For blind and through hole applications
- NT - nitride surface treatment for increased wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU100501.5249 |
| Thread Size | 1-1/4"-8" |
| Thread Diameter Size (Inch) | 1-1/4" |
| Thread Standard | UN |
| Thread per Inch (TPI) | 8 TPI |
| Tap Square (Decimal Inch) | 0.766" |
| Thread Length (Decimal Inch) | 1.181" |
| Overall Length (Decimal Inch) | 7.087" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 1.021" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE |
| Coating | NT |
| Tool Type | EMUGE H |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
