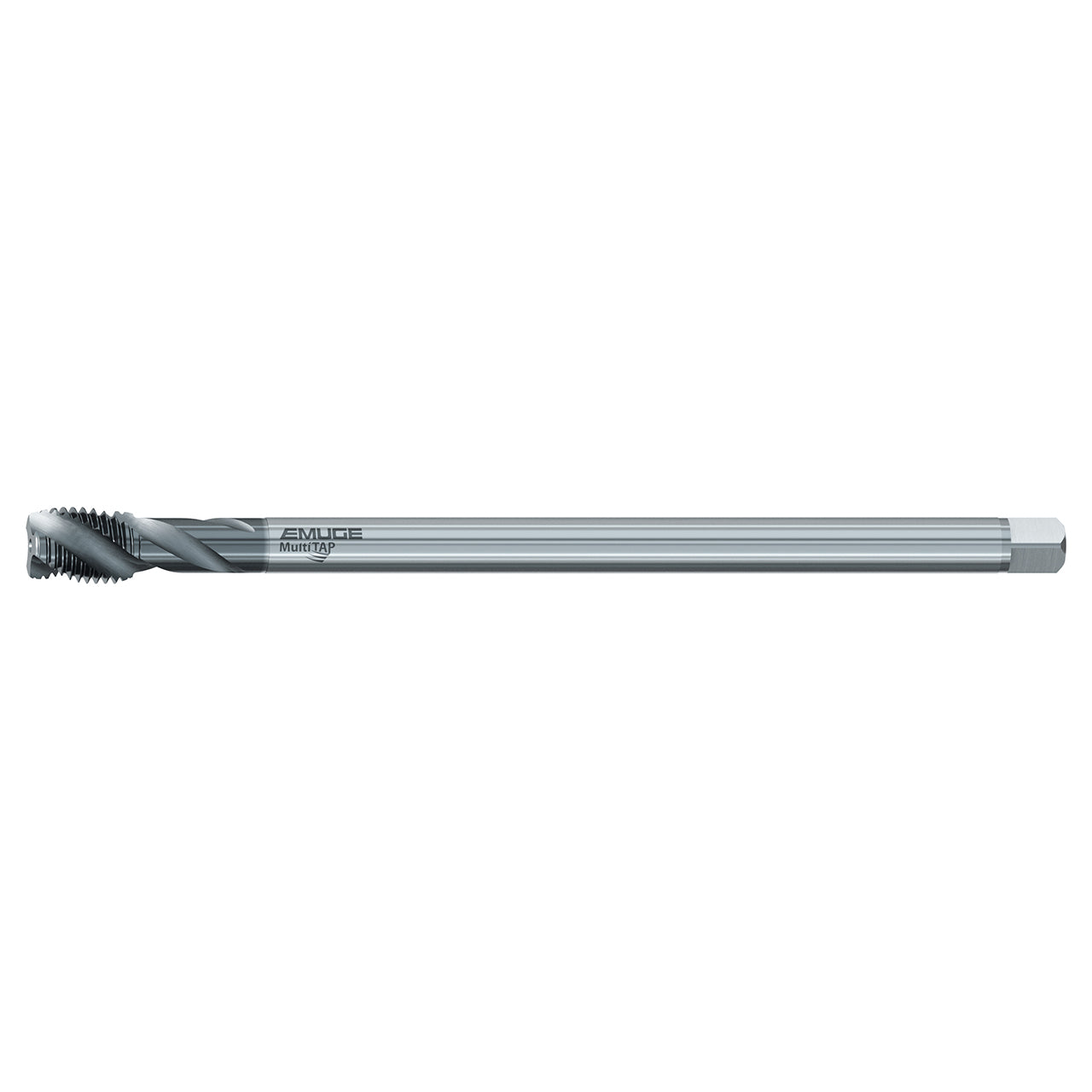

Features:
- MultiTAP will cut a wide range of material including carbon steel, steel alloys, stainless steel, aluminum and copper
- This all purpose design is well suited to the job shop, short run tapping environment
- Longer tool life and more consistent thread quality
Product Specifications
| Manufacturer Part Number | C5869300.0100 |
| Thread Size | M 10x1.5 |
| Thread Diameter Size | M 10 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 5.50mm |
| Thread Length (mm) | 16.00mm |
| Overall Length (mm) | 200.00mm |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | Extended Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 35 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | MultiTAP |
| Application | Extension Taps |
| Product Type | Spiral Point Tap |
