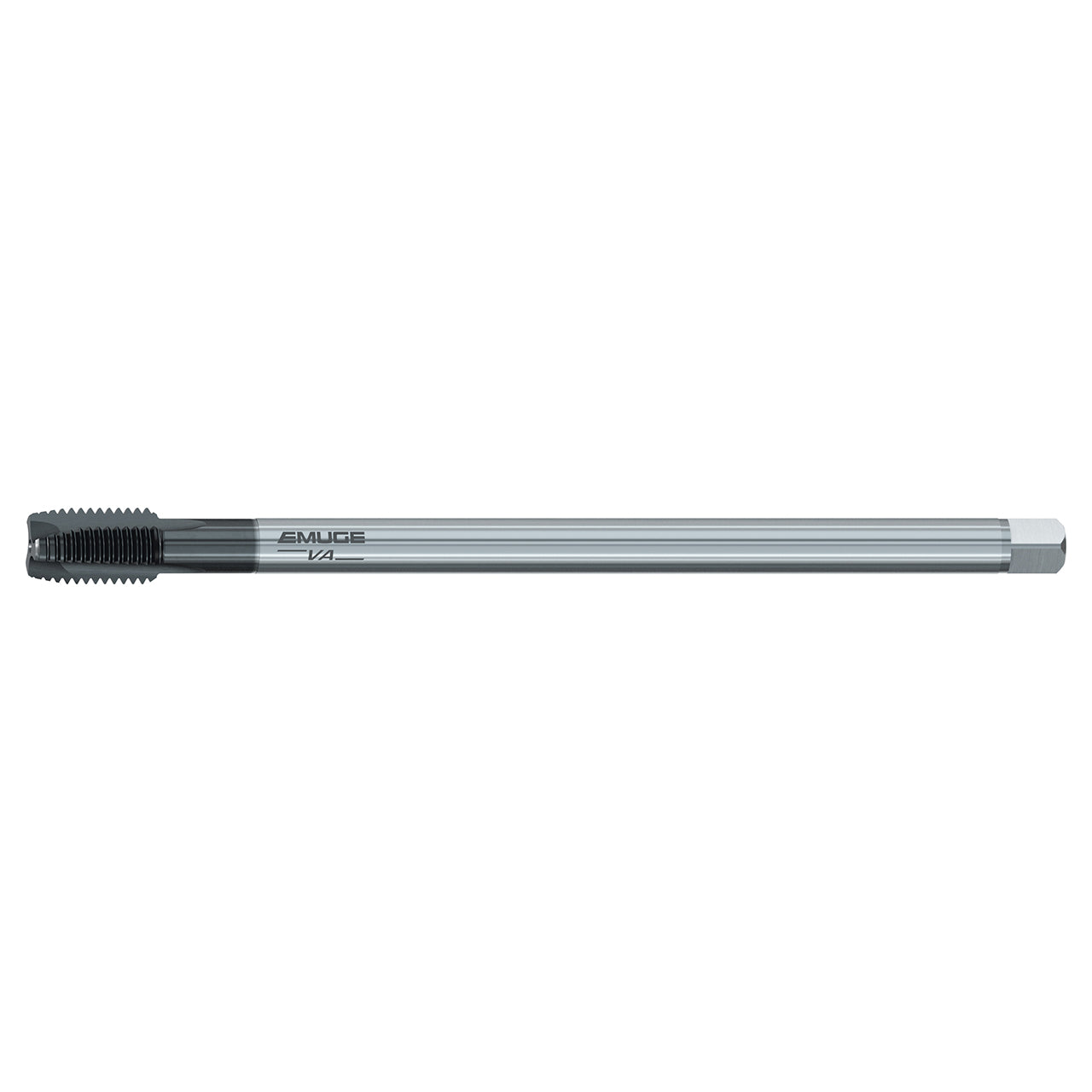

Features:
- Rekord B-VA LS design is for stainless steel and steel alloys
- Spiral point creates tight curled chips that are pushed ahead of the tap
- Specially adapted flute shape, rake angle and relief angle for long tool life
- With extra-long shank for difficult-to-reach threads
Product Specifications
| Manufacturer Part Number | C220C300.0114 |
| Thread Size | M 14x2 |
| Thread Diameter Size | M 14 |
| Thread Standard | M |
| Thread Pitch (mm) | 2.00mm |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 26.00mm |
| Overall Length (mm) | 224.00mm |
| Thread Tolerance Class | 6H |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | Extended Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Tool Type | Rekord B-VA |
| Application | Extension Taps |
| Product Type | Spiral Point Tap |
