Features:

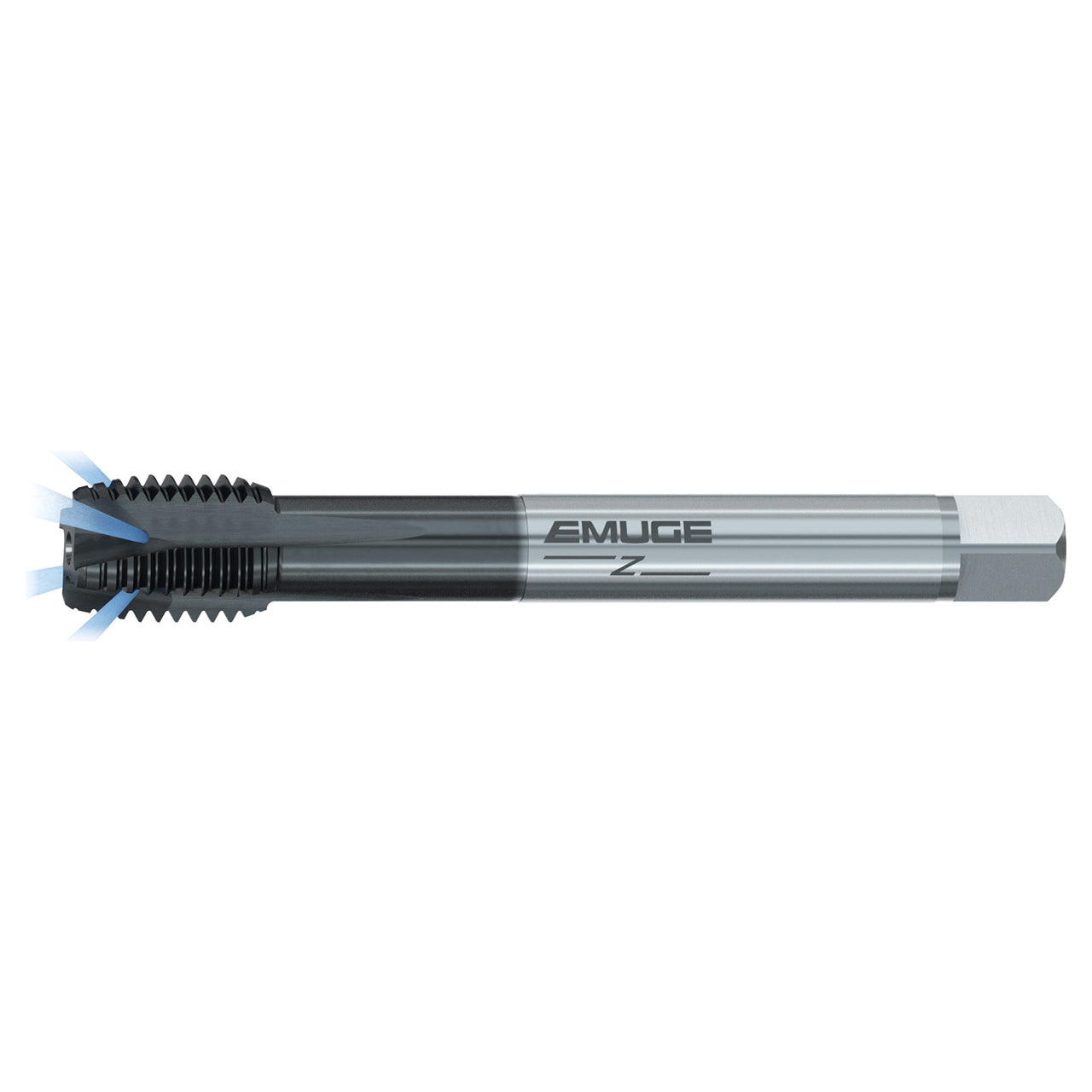

- Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys
- Radial coolant fed to maximize chip evacuation and improve thread quality
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C108A601.0390 |
| Thread Size | M 18x1.5 |
| Thread Diameter Size | M 18 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 11.00mm |
| Thread Length (mm) | 17.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-1 |
| Tool Type | Rekord Z |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
