Features:

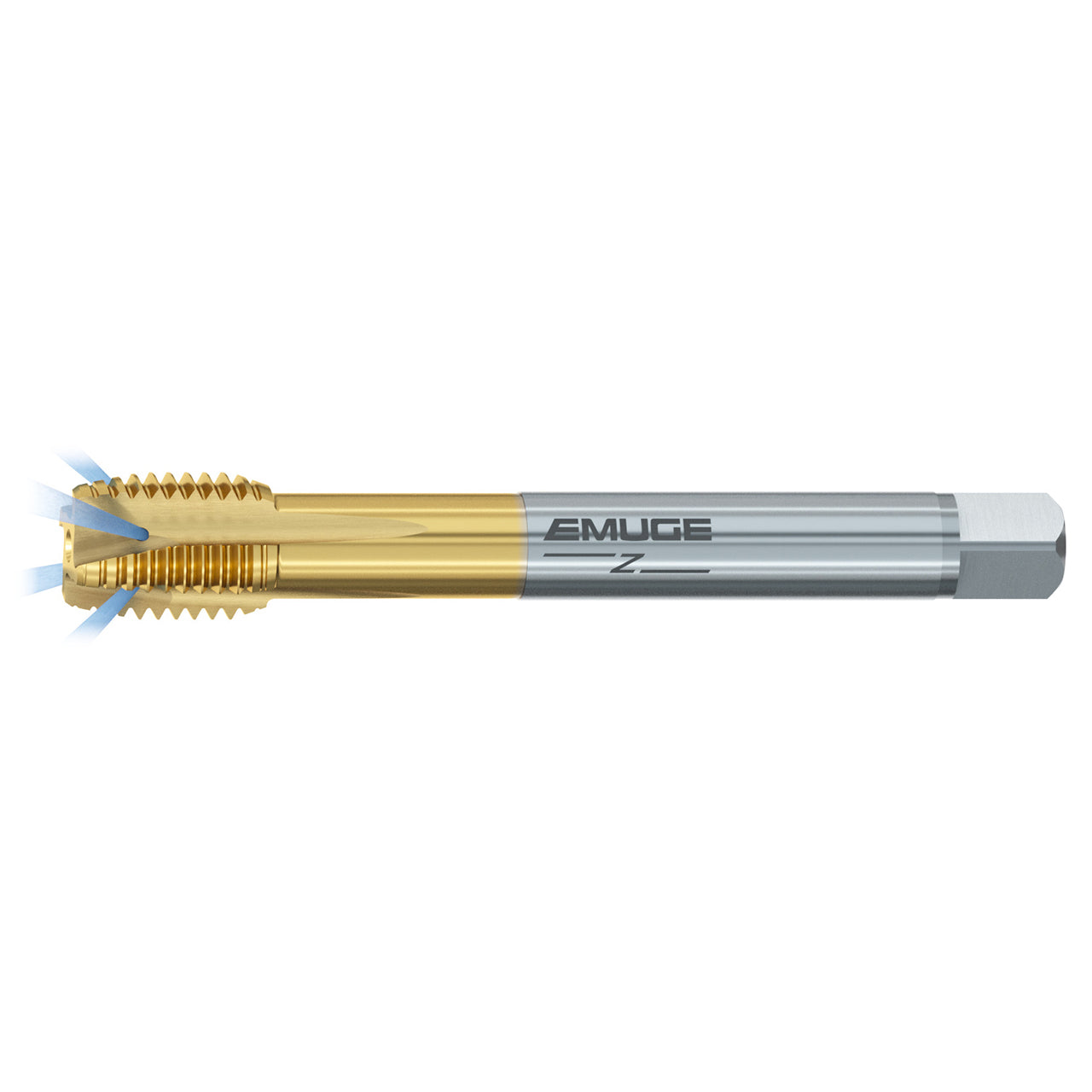

- Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys.
- Radial coolant fed to maximize chip evacuation and improve thread quality
- TIN-70 coated for wear resistance and surface lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C1088F21.0118 |
| Thread Size | M 18x2.5 |
| Thread Diameter Size | M 18 |
| Tap Square (mm) | 11.00mm |
| Thread Length (mm) | 25.00mm |
| Overall Length (mm) | 125.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6GX |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-70 |
| Product Type | Straight Flute Tap |
