Features:

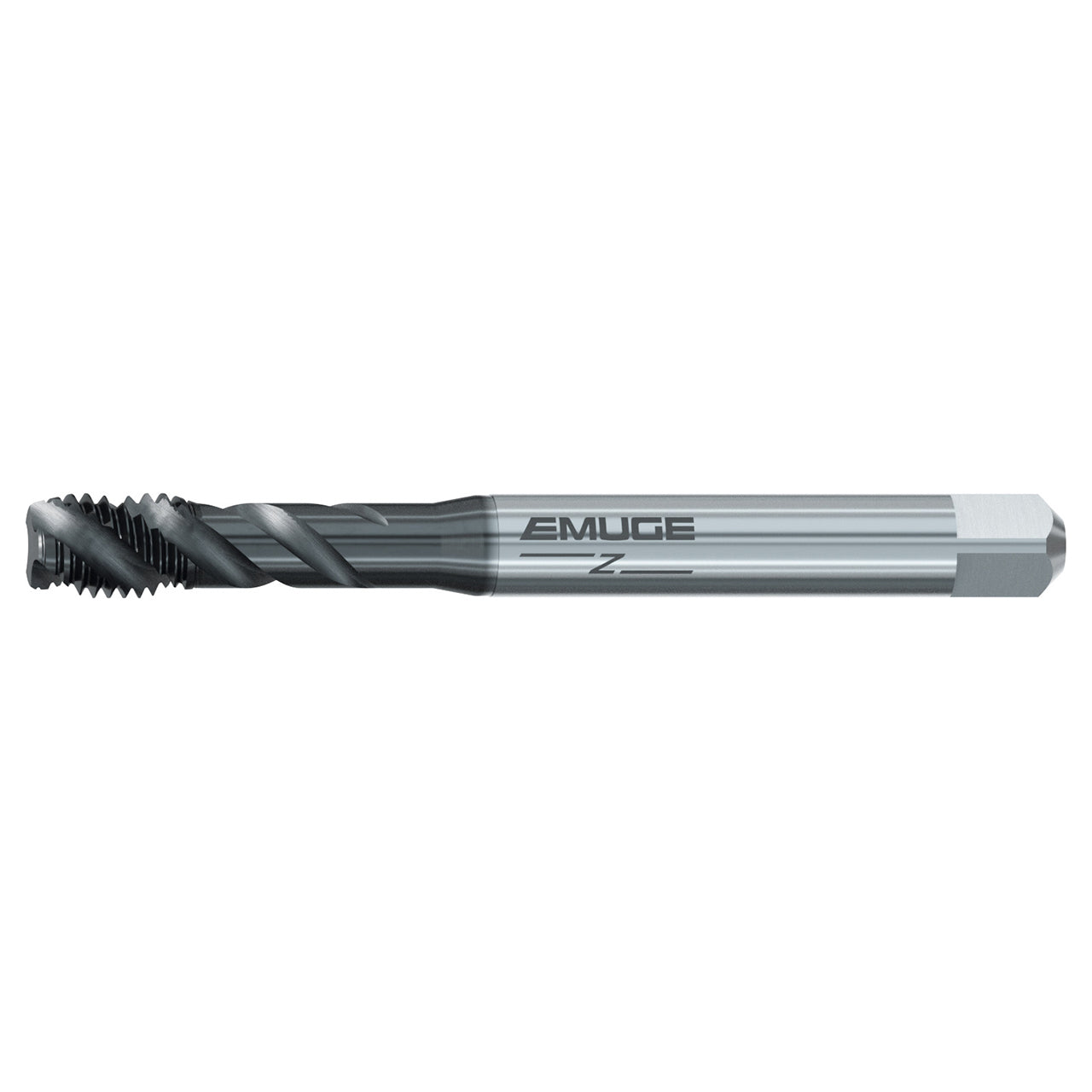

- Enorm Z/E design is for stainless steel and steel alloys.
- Spiral flute design to help efficiently evacuate chips
- Specially adapted flute shape, rake angle and relief angle for long tool life
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C051C400.1058 |
| Thread Size | M 12x1.75 |
| Thread Diameter Size | M 12 |
| Tap Square (mm) | 7.00mm |
| Length Group | DIN Length |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Spiral Flute Tap |
