Features:

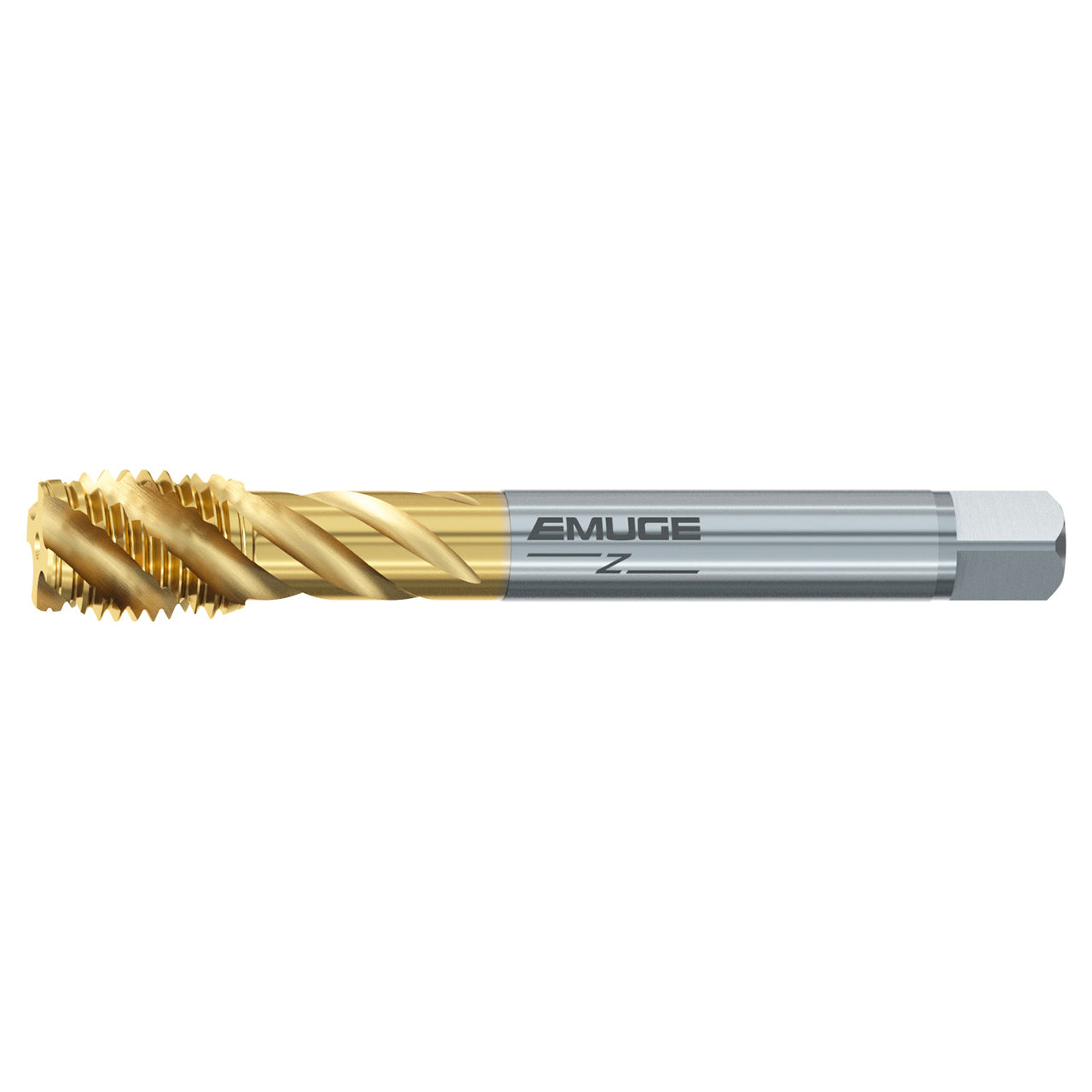

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- TIN coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0513701.4036 |
| Thread Size | 1/4"-19 |
| Thread Diameter Size (Inch) | 1/4" |
| Thread Standard | G (BSP) |
| Thread per Inch (TPI) | 19 TPI |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 100.00mm |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | Enorm Z/E |
| Application | Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
