Features:

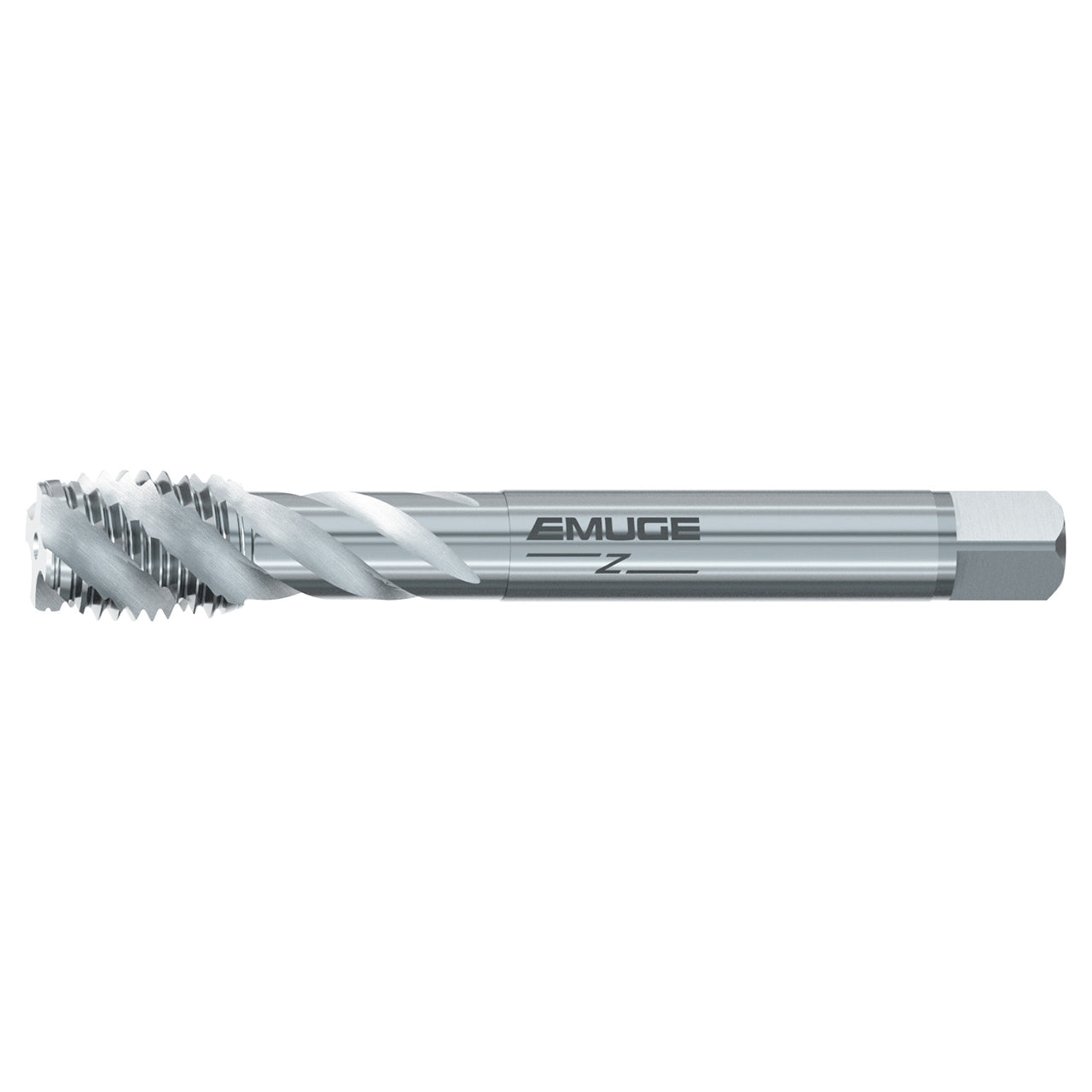

- The Enorm Z/E design is typically for blind hole threads in long chipping materials.
- The fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0513501.4040 |
| Thread Size | 3/4"-14 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 14 TPI |
| Tap Square (mm) | 16.00mm |
| Thread Length (mm) | 28.00mm |
| Overall Length (mm) | 140.00mm |
| Length Group | DIN Length |
| Number of Flutes | 5 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | G (BSP) |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Product Type | Straight Flute Tap |
