Features:

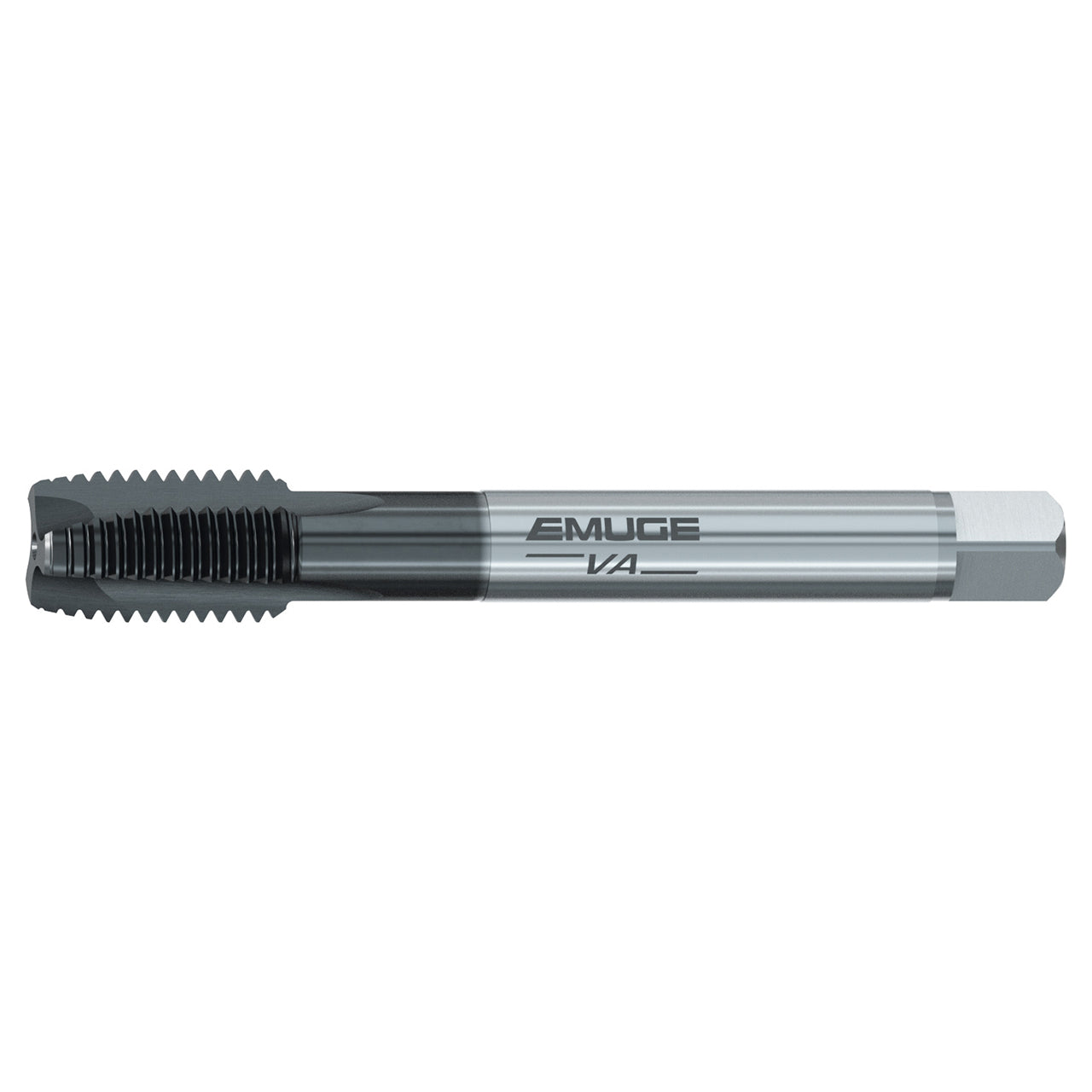

- Rekord B-VA design is for stainless steel and steel alloys.
Product Specifications
| Manufacturer Part Number | C020C300.1062 |
| Thread Size | M 20x2.5 |
| Thread Diameter Size | M 20 |
| Tap Square (mm) | 12.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Straight Flute Tap |
