Features:
- Rekord B-Z design is typically for through hole applications in long-chipping materials.
- Spiral point creates tight curled chips that are pushed ahead of the tap
- TIN 70 coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications

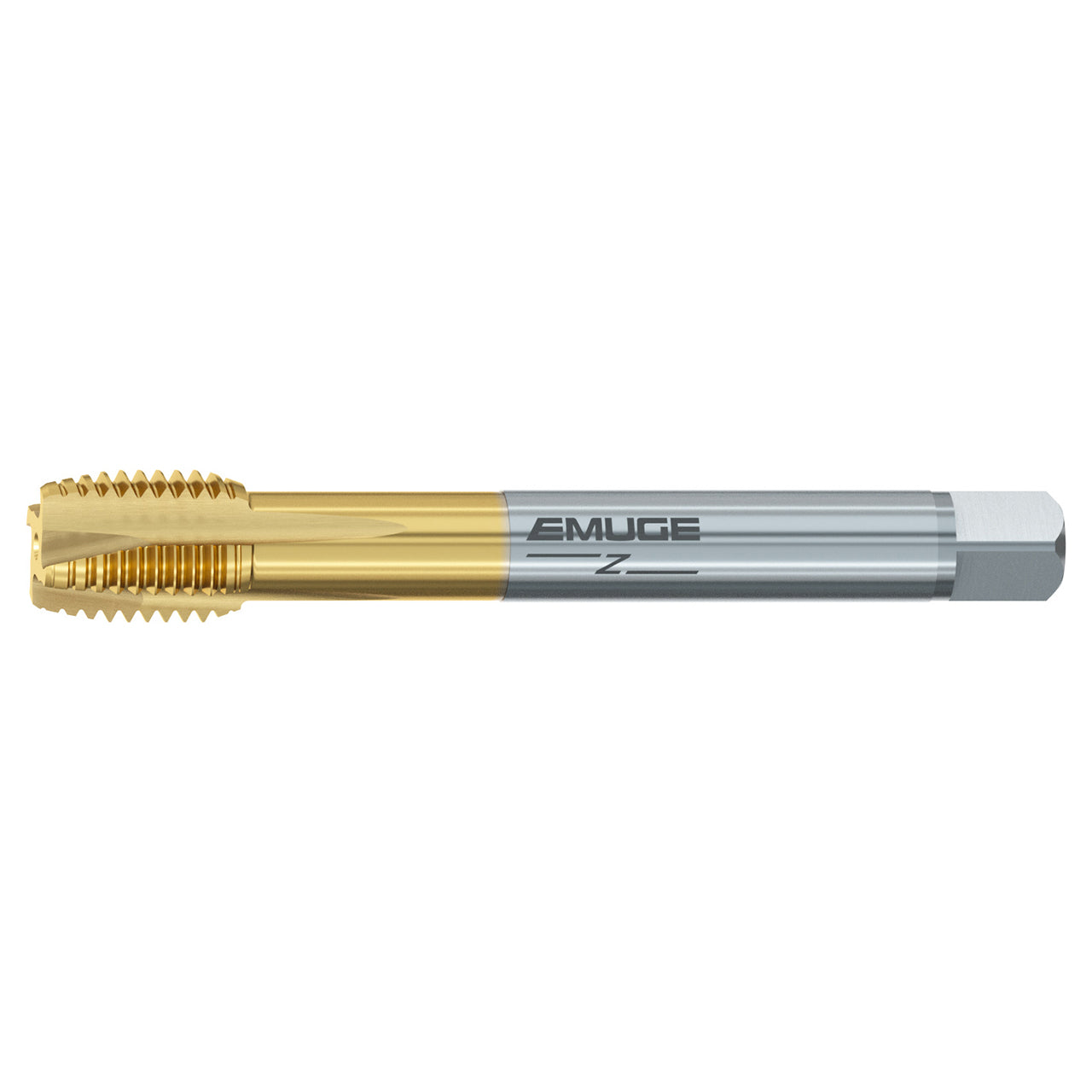

| Manufacturer Part Number | C0208F21.0112 |
| Thread Size | M 12x1.75 |
| Thread Diameter Size | M 12 |
| Tap Square (mm) | 7.00mm |
| Thread Length (mm) | 17.50mm |
| Overall Length (mm) | 110.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6GX |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-70 |
| Product Type | Straight Flute Tap |
