Features:

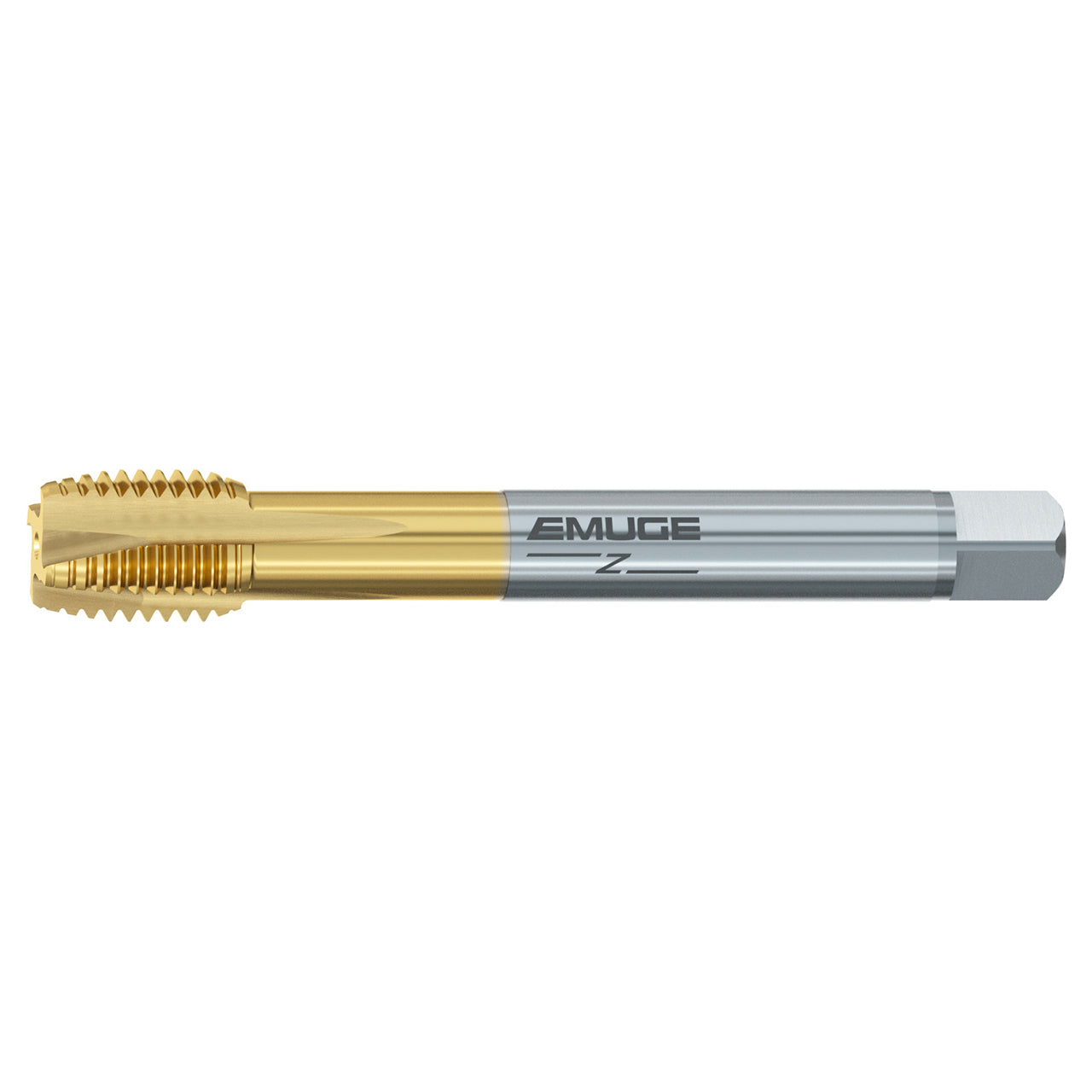

- Rekord B-Z design is typically for through hole applications in long-chipping materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- TIN 70 coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0208F01.0276 |
| Thread Size | M 10x1 |
| Thread Diameter Size | M 10 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.00mm |
| Tap Square (mm) | 5.50mm |
| Thread Length (mm) | 10.00mm |
| Overall Length (mm) | 90.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-70 |
| Tool Type | Rekord B-Z |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
