Features:

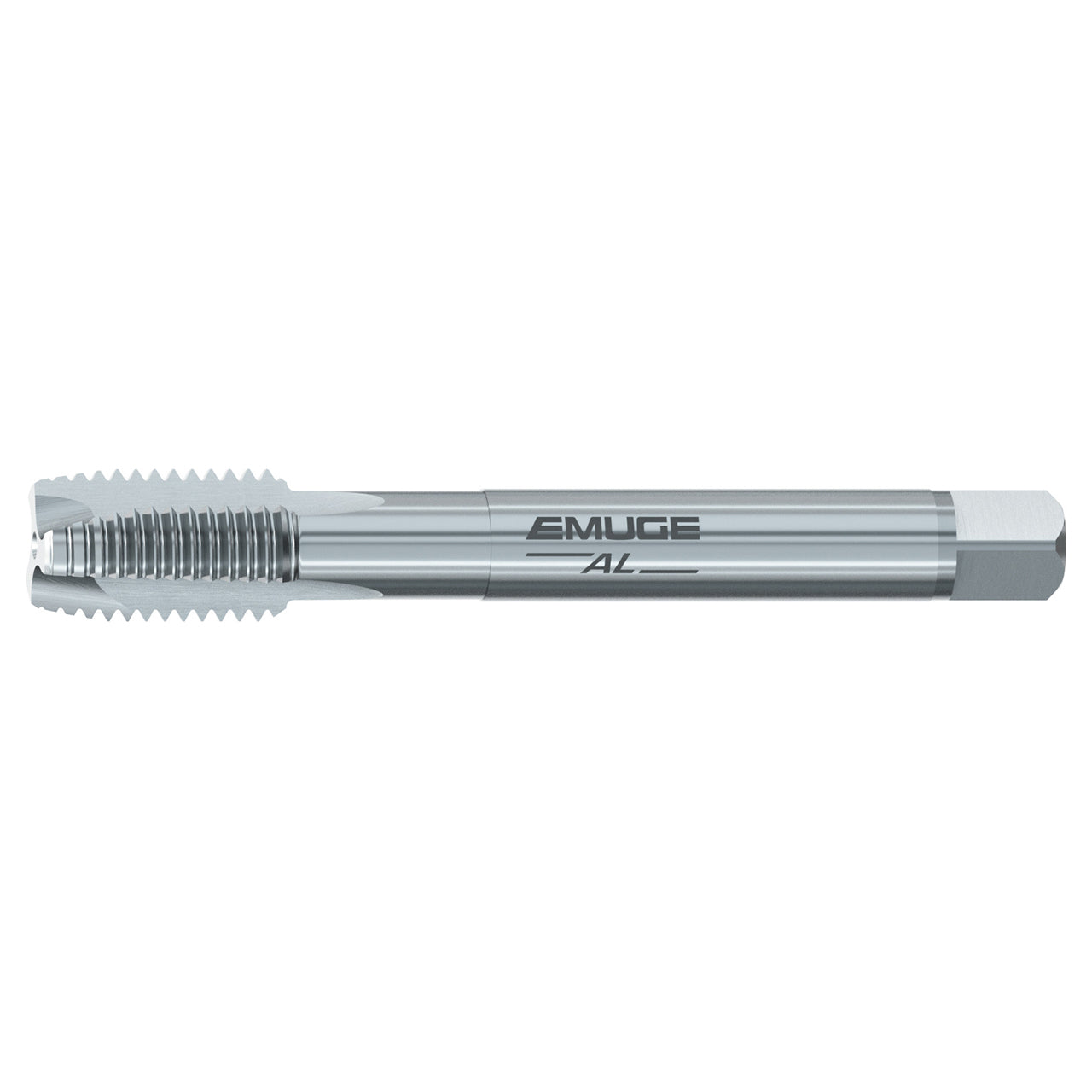

- Rekord B-AL tap is a plug style tap designed for wrought aluminum materials
- The spiral point ensures optimum chip removal in the feed direction
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0204500.0114 |
| Thread Size | M 14x2 |
| Thread Diameter Size | M 14 |
| Thread Standard | M |
| Thread Pitch (mm) | 2.00mm |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 26.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | EMUGE AL |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
