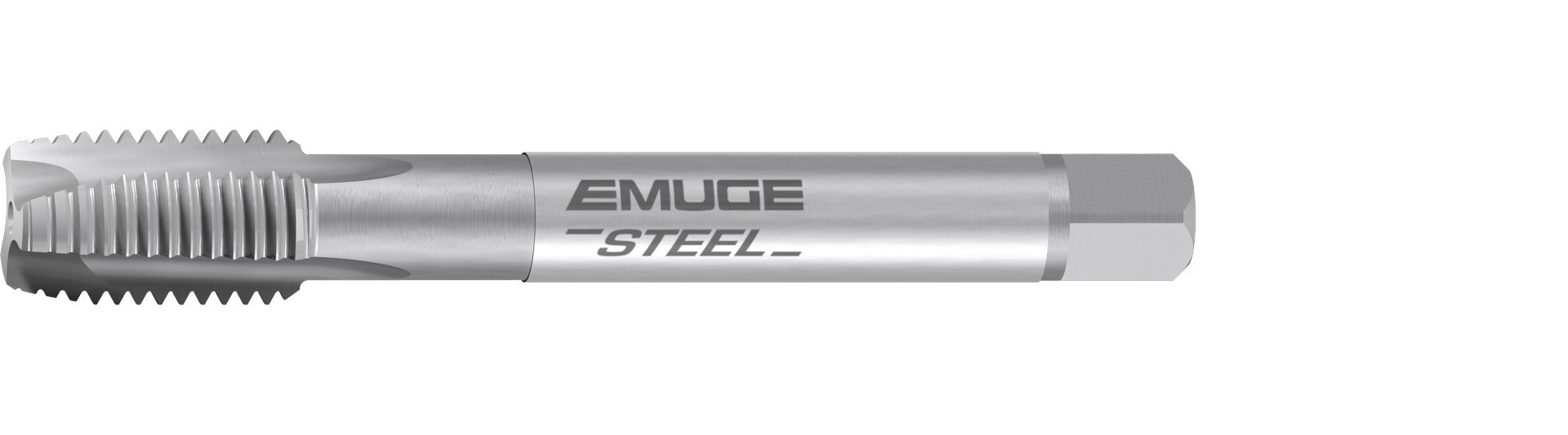

Product Specifications
| Chamfer | 4-5 P |
| Chamfer Form | B |
| Class | 6H |
| Pitch | 1.5 |
| Size | M 24 |
| Thread Standard | MF |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 18 mm |
| Dimension Standards | DIN/DIN |
| Overall Length (mm) | 140 mm |
| Thread Length (mm) | 34 mm |
| Flute Direction | Right Hand |
