Features:

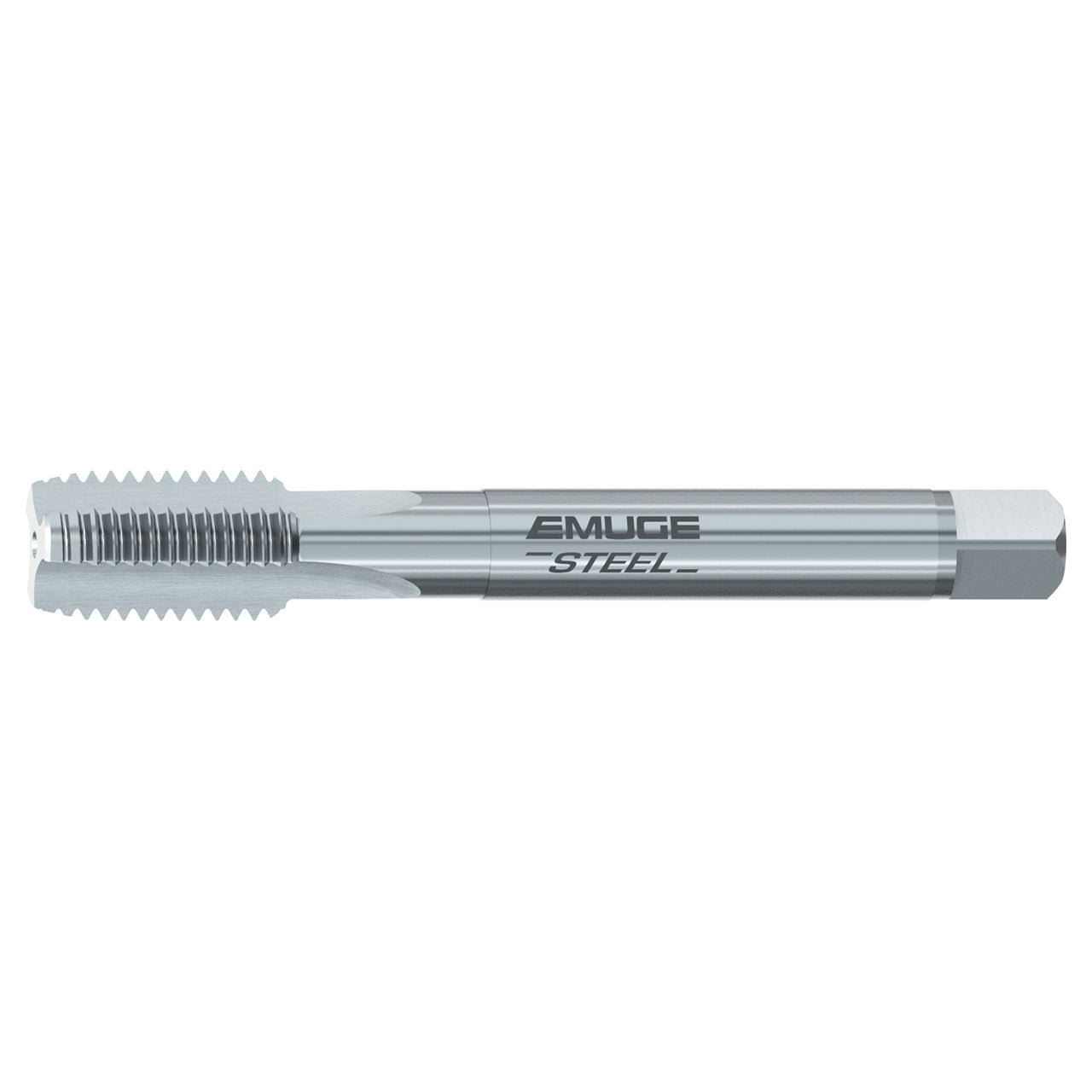

- Rekord A-Steel is a straight flute design for CNC applications
- HSSE tap, best suited for short chipping steel material grades
- Through and blind hole applications
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0101001.0595 |
| Thread Size | M 45x1.5 |
| Thread Diameter Size | M 45 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 29.00mm |
| Thread Length (mm) | 32.00mm |
| Overall Length (mm) | 180.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Rekord A-Steel |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
