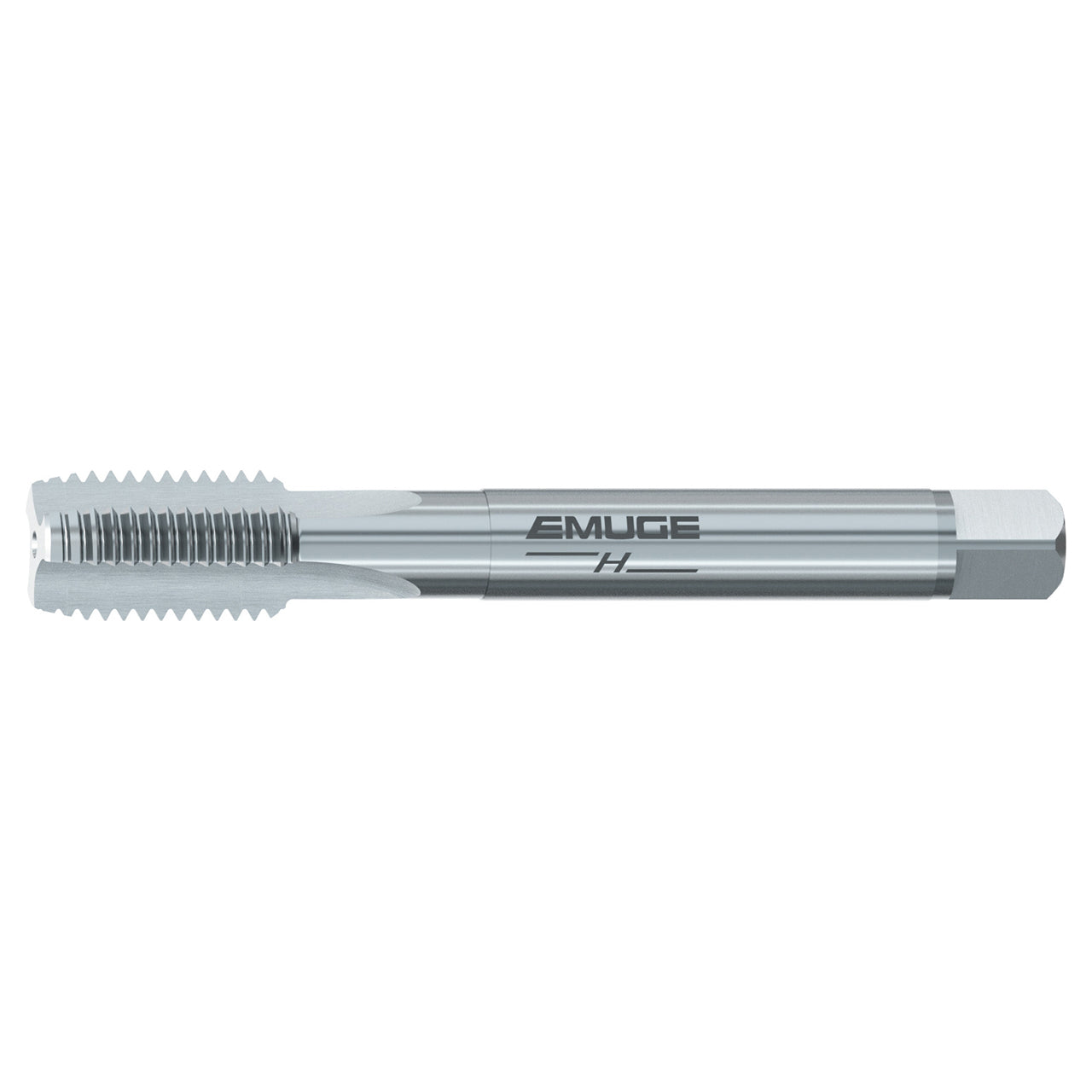

Features:
- HSSE tap, best suited for short chipping, high tensile strength materials (cast iron & hardened steels)
- For blind and through hole applications
- NT - nitride surface treatment for increased wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0100501.0122 |
| Thread Size | M 22x2.5 |
| Thread Diameter Size | M 22 |
| Thread Standard | M |
| Thread Pitch (mm) | 2.50mm |
| Tap Square (mm) | 14.50mm |
| Thread Length (mm) | 32.00mm |
| Overall Length (mm) | 140.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE |
| Coating | NT |
| Tool Type | EMUGE H |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
