Features:

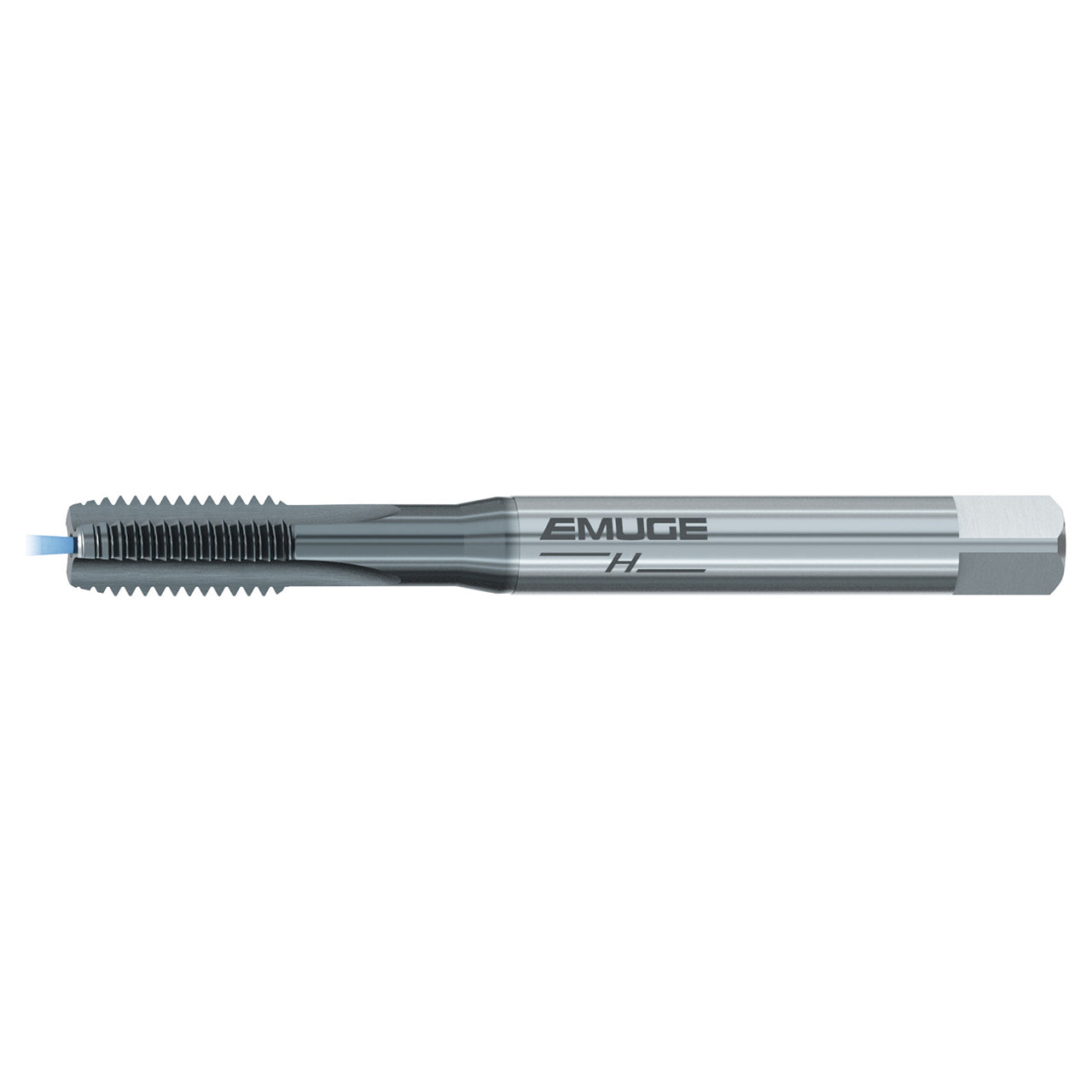

- Rekord A-Z is a straight flute for short chipping materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU959401.5044 |
| Thread Size | 5/16"-24" |
| Thread Diameter Size (Inch) | 5/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.238" |
| Overall Length (Decimal Inch) | 3.543" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.318" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord Z |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
