Features:

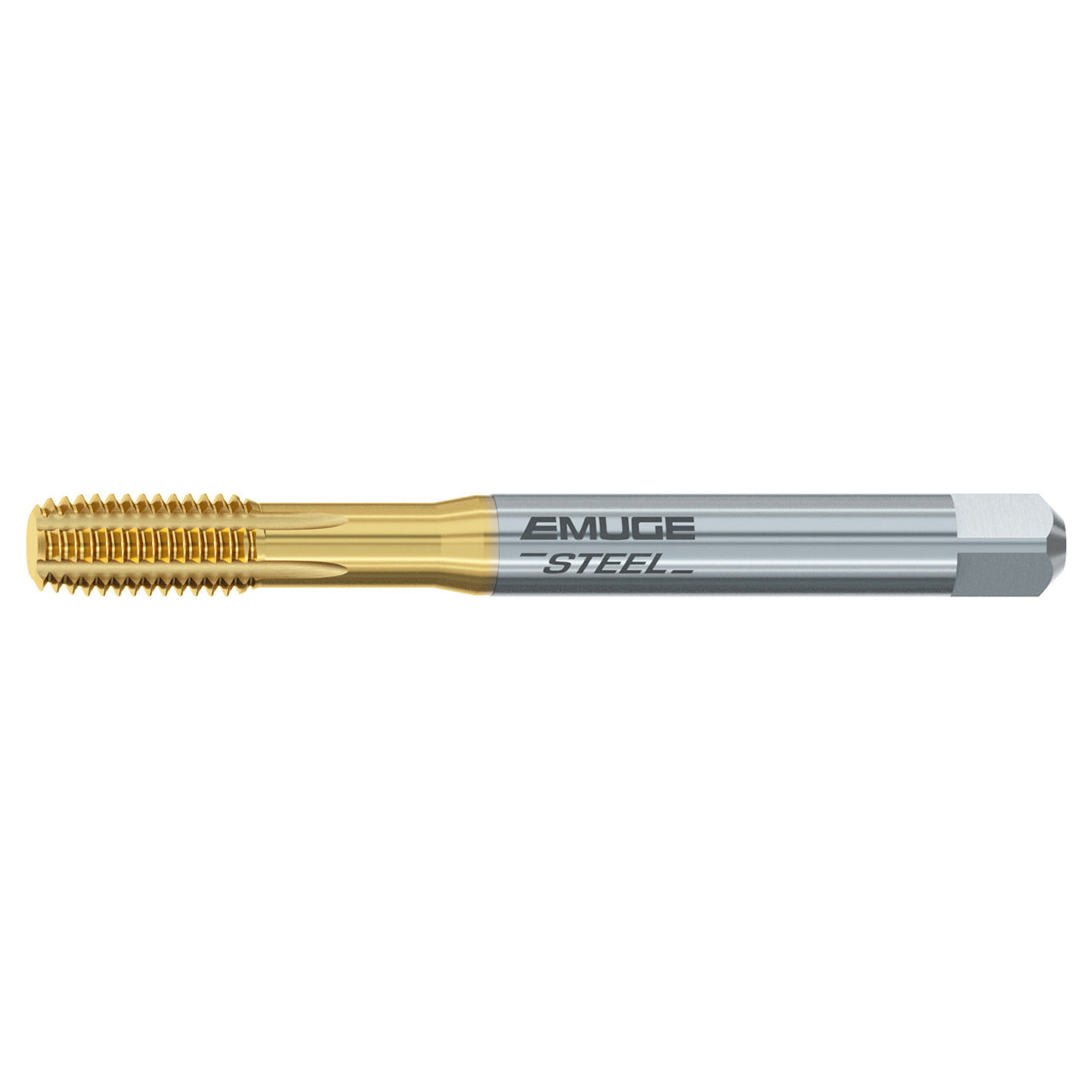

- The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
- Steel Alloys & Long Chipping Materials
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU931400.5663 |
| Thread Size | LK 5/16-18 |
| Thread Diameter Size | LK 5/16 |
| Thread Standard | LK-UNC |
| Thread per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.238" |
| Thread Length (Decimal Inch) | 0.787" |
| Overall Length (Decimal Inch) | 3.543" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.318" |
| Thread Tolerance Class | BT |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Class of Fit | LK |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | Roll Form - Druck |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
