Features:

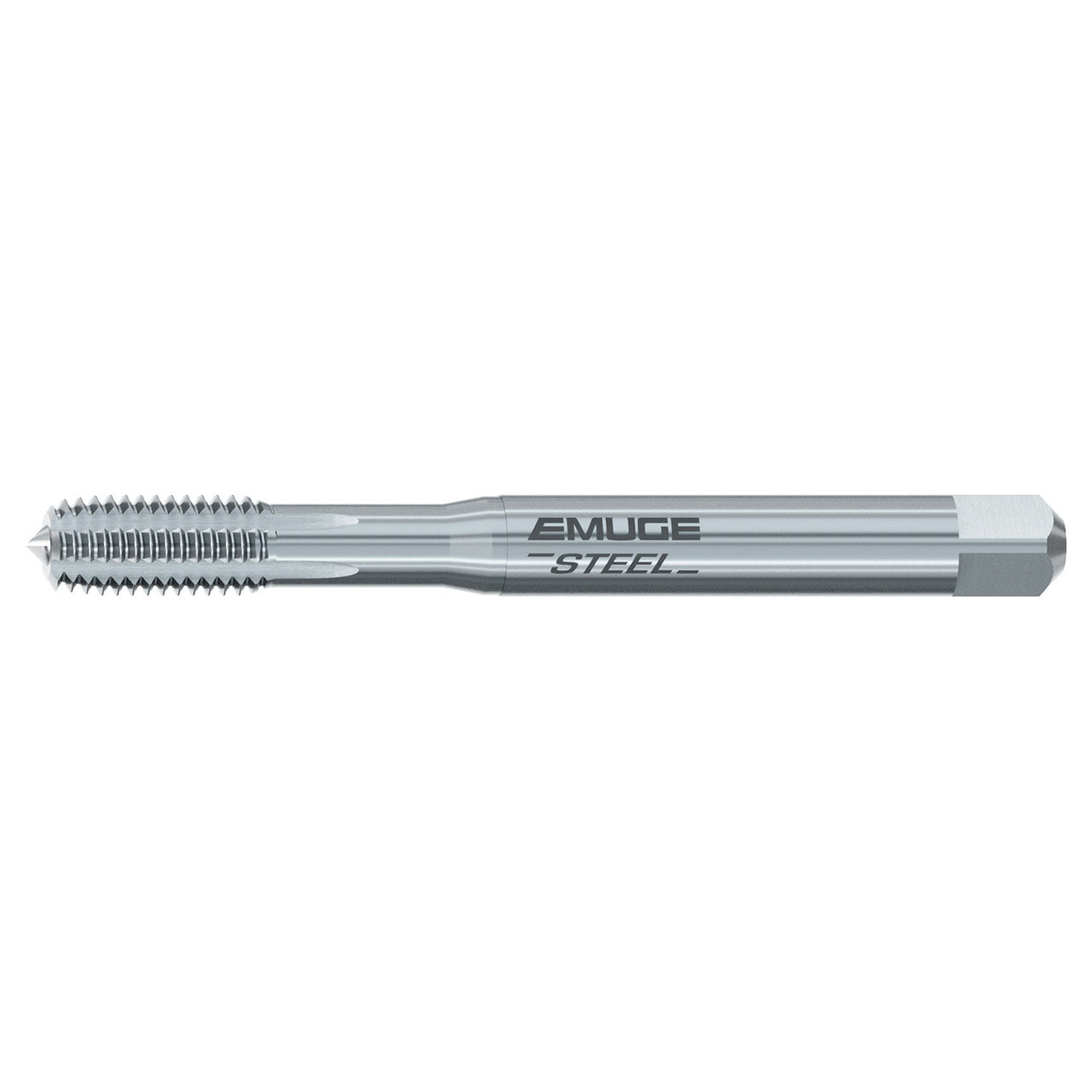

- The Druck Steel roll form tap is a universal design for the chipless production of internal threads, blind and though hole.
- Designed for use in CNC-controlled machines
- NT - nitride surface treatment for increased wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU921000.5045 |
| Thread Size | 3/8"-24 |
| Thread Diameter Size | 3/8" |
| Thread Per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.286" |
| Overall Length (Decimal Inch) | 3.937" |
| Length Group | DIN Length |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | NT |
| Product Type | Straight Flute Tap |
