Features:

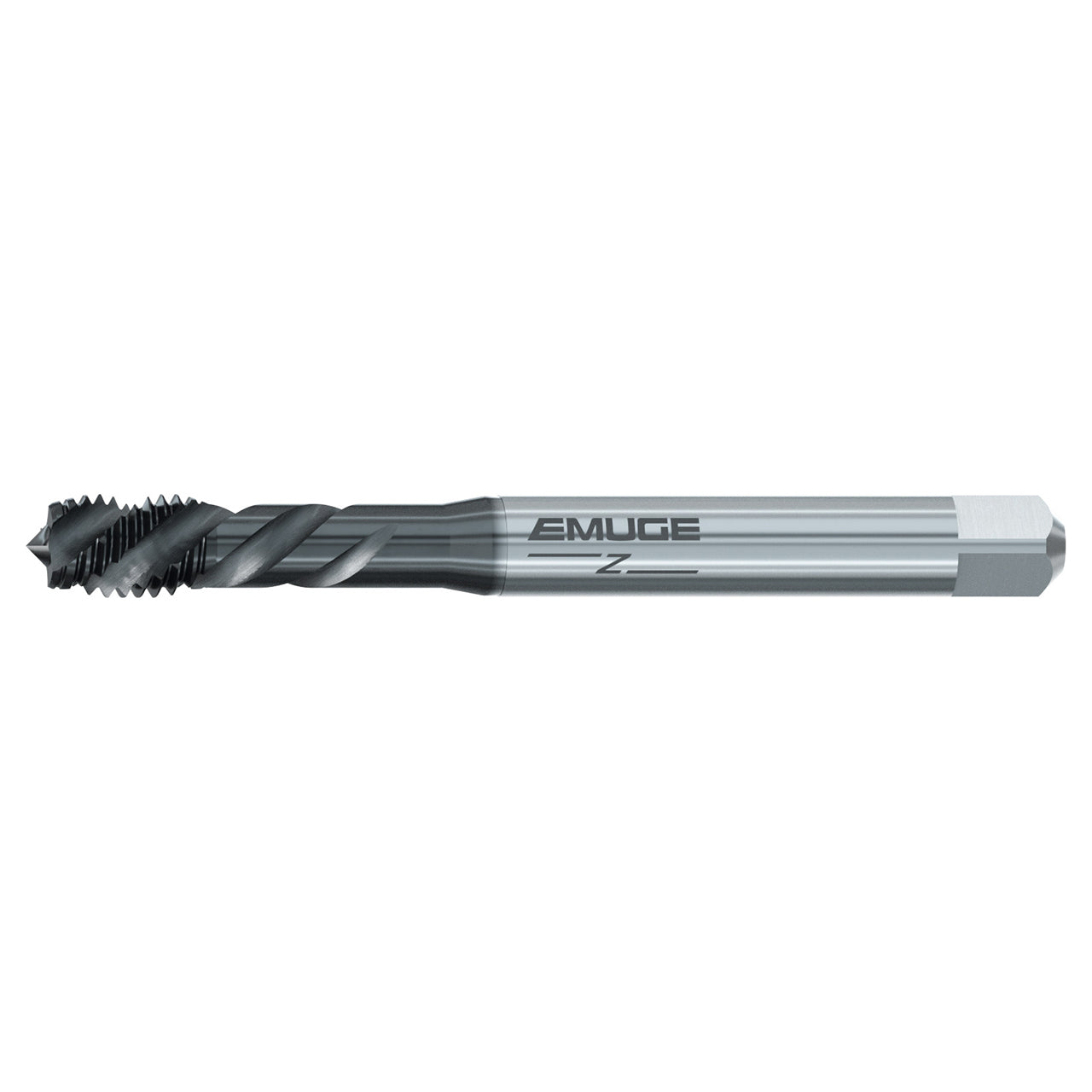

- The Enorm Z design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU50C460.5011 |
| Thread Size | 3/8"-16" |
| Thread Diameter Size (Inch) | 3/8" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 16 TPI |
| Tap Square (Decimal Inch) | 0.286" |
| Thread Length (Decimal Inch) | 0.866" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.381" |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Tool Type | Enorm Z |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
