Features:

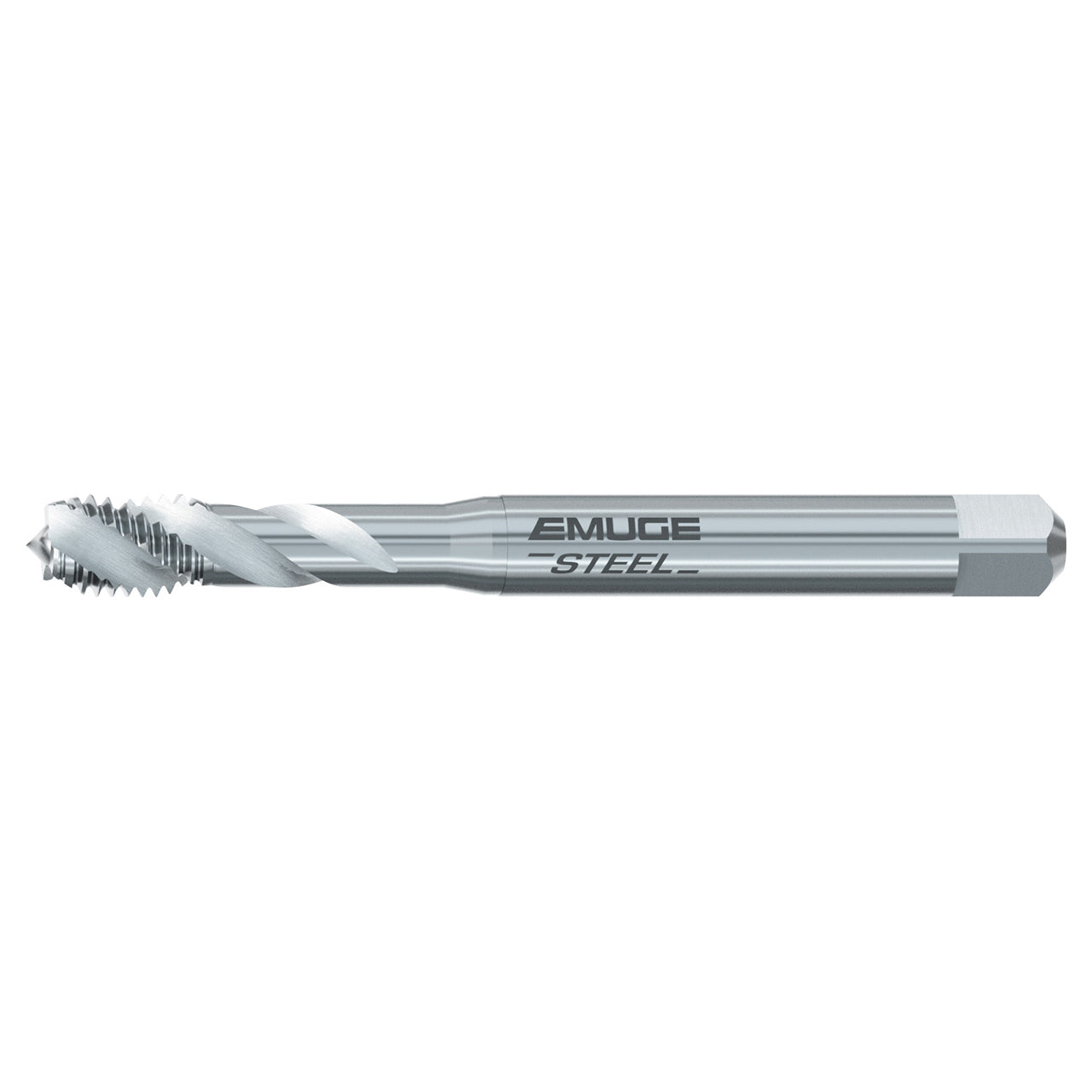

- The Enorm Steel design is typically for blind hole threads in long chipping materials such as steel and copper alloys
- Fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU501000.5041 |
| Thread Size | #10-32 |
| Thread Diameter Size | #10 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 32 TPI |
| Thread Length (Decimal Inch) | 0.591" |
| Overall Length (Decimal Inch) | 2.756" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.194" |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 35 Degree |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Enorm Steel |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
