Features:

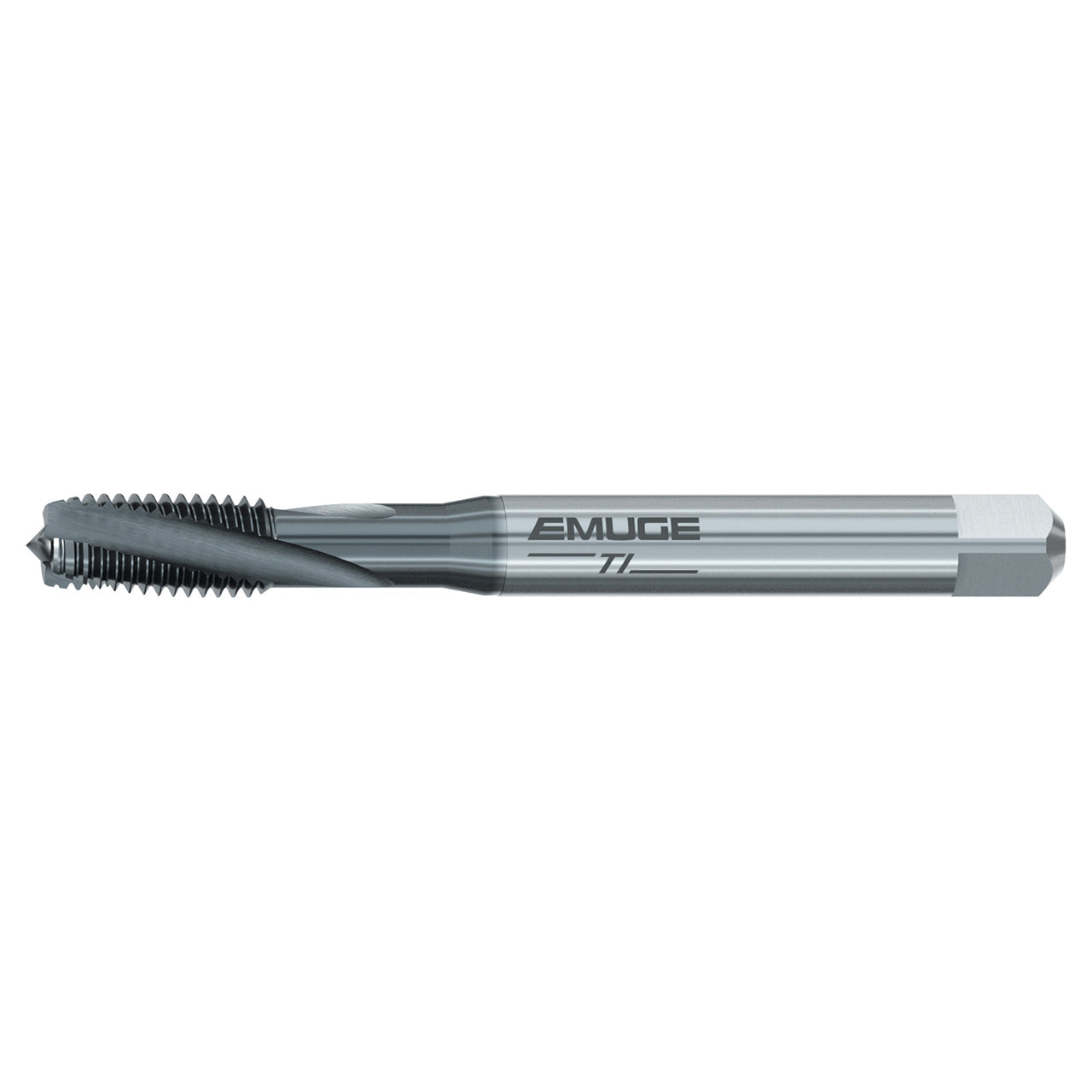

- Rekord D-TI tap is a slow spiral design for blind holes
- Best suited for titanium and high tensile strength materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU459611.5004 |
| Thread Size | #5-40 |
| Thread Diameter Size | #5 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 40 TPI |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord D-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
