Features:

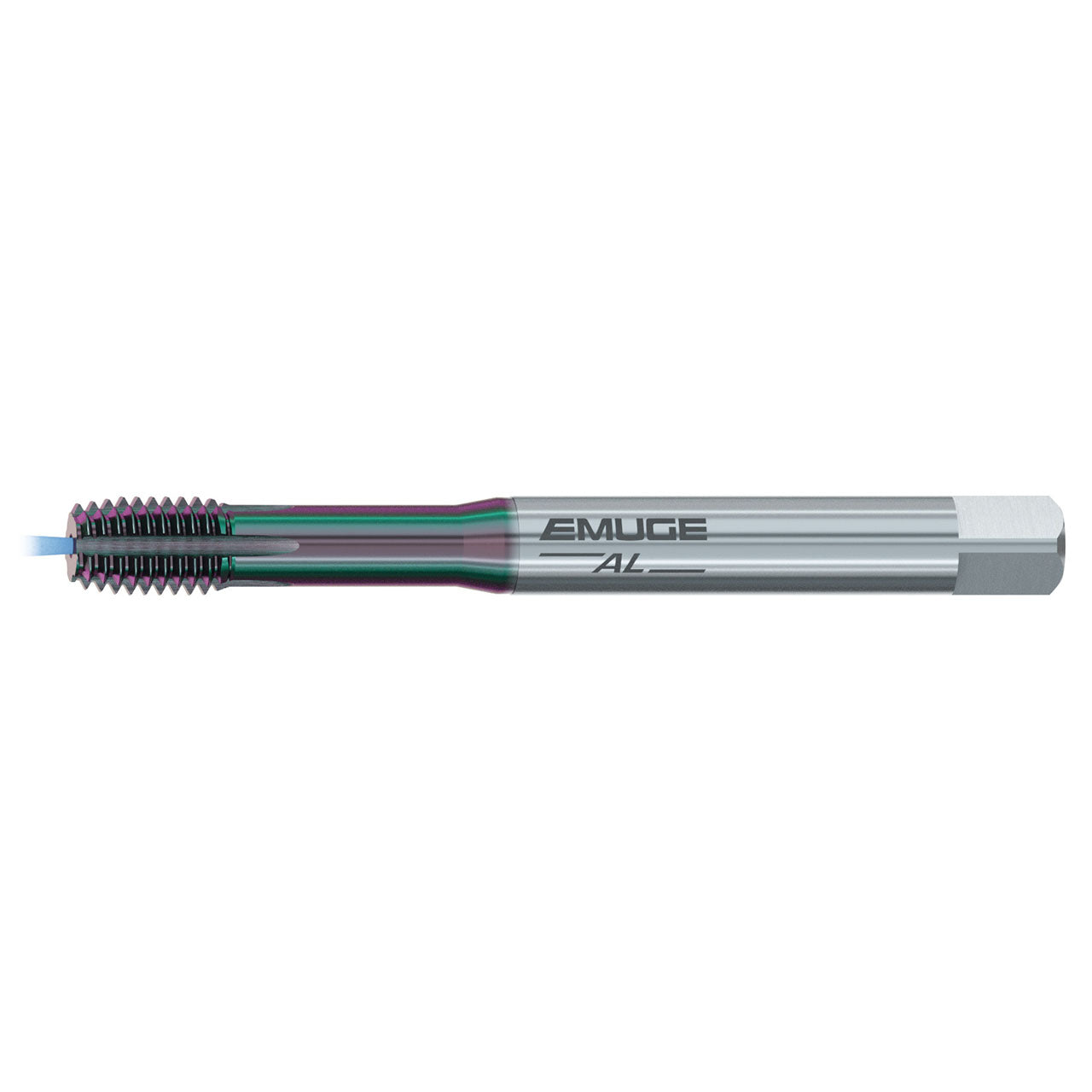

- The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
- Axial coolant fed to maximize chip evacuation and improve thread quality
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU441Q00.5007 |
| Thread Size | #10-24 |
| Thread Diameter Size | #10 |
| Thread Per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.152" |
| Thread Length (Decimal Inch) | 0.417" |
| Overall Length (Decimal Inch) | 2.756" |
| Length Group | DIN Length |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNC |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-104 |
| Product Type | Straight Flute Tap |
