Features:

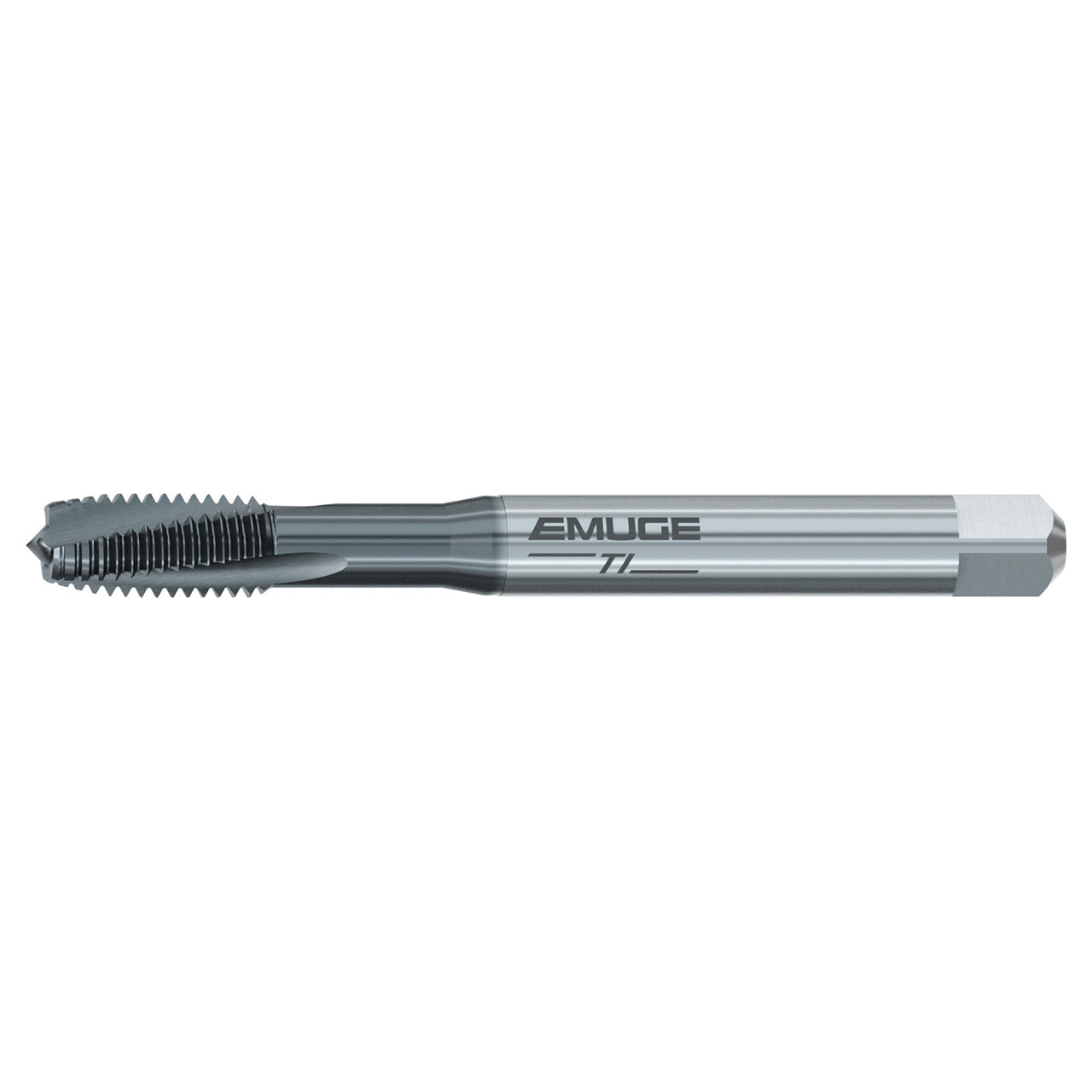

- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
- Best suited for through hole applications
- Longer tool life and more consistent thread quality
- Constant rake angle over the entire chamfer length enables very stable chamfer teeth for machining high-strength materials
Product Specifications
| Manufacturer Part Number | BU309611.5000 |
| Thread Size | #1-64 |
| Thread Diameter Size | #1 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 64 TPI |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord C-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
