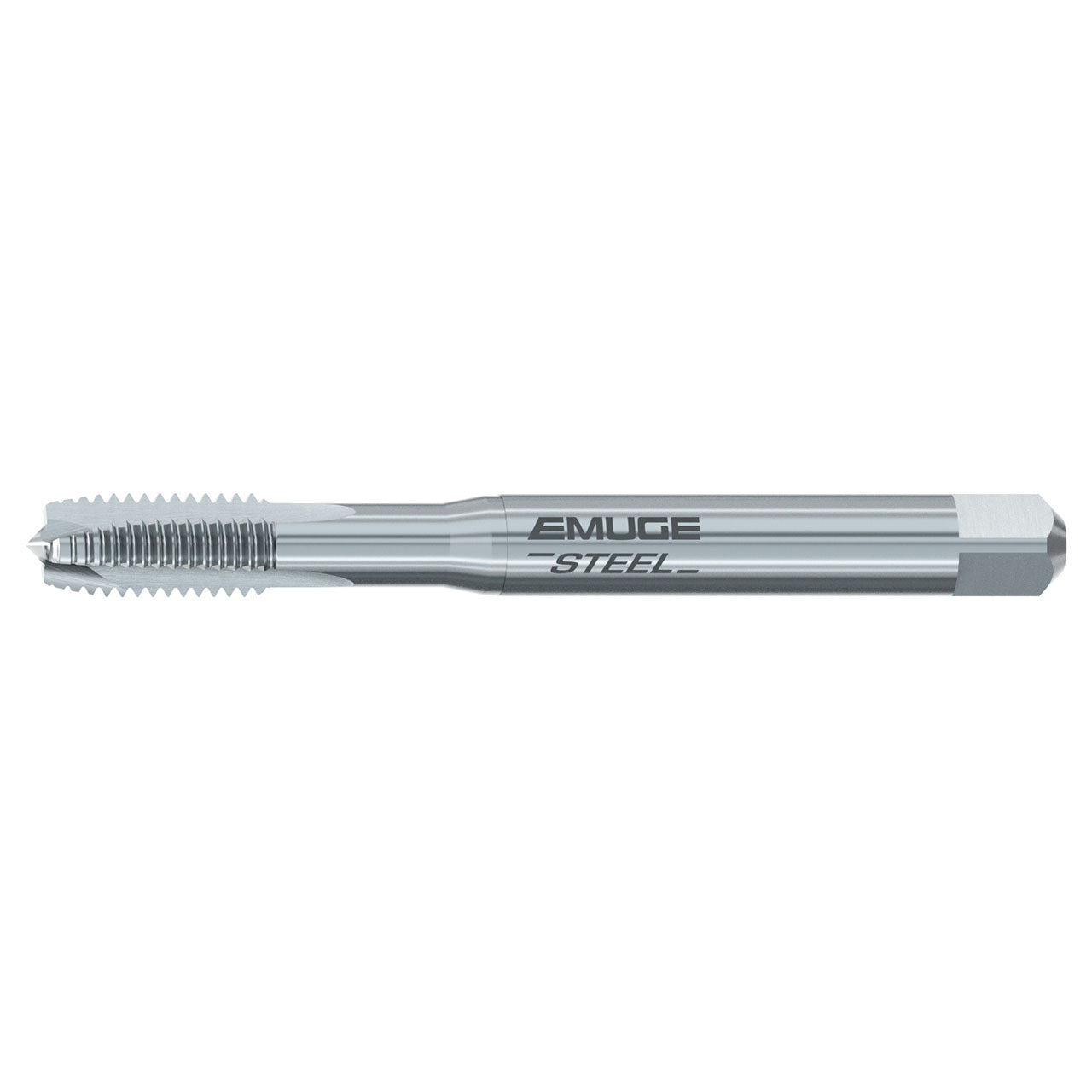

Features:
- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- The spiral point ensures optimum chip removal in the feed direction
- Bright, uncoated surface finish
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU208900.5662 |
| Thread Size | LK 1/4-20 |
| Thread Diameter Size | LK 1/4 |
| Thread Per Inch (TPI) | 20 TPI |
| Tap Square (Decimal Inch) | 0.191" |
| Overall Length (Decimal Inch) | 3.150" |
| Length Group | DIN Length |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | LK-UNC |
| Thread Tolerance Class | BT |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Class of Fit | LK |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Product Type | Straight Flute Tap |
