Features:

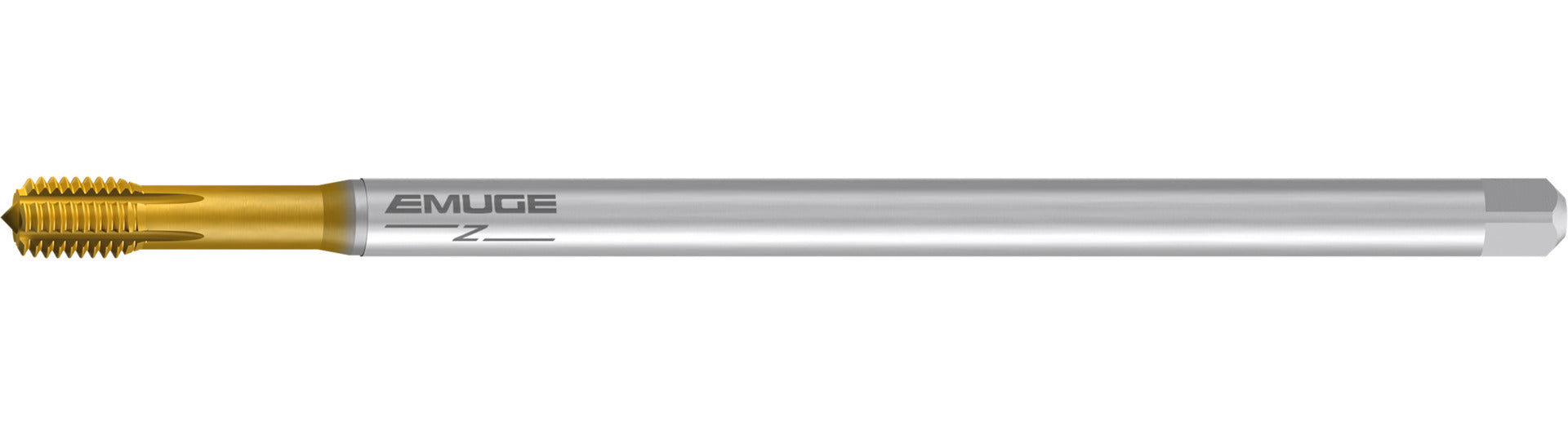

- The InnoForm Z roll form tap is designed for specific applications and materials. This high performance design provides maximum tool life and thread quality with specific flute forms and PVD coating combinations.
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2-3 P |
| Chamfer Form | C |
| Pitch | 1 |
| Size | M 6 |
| Thread Limit | 6H |
| Thread Standard | M |
| Applicable Material | Low tensile materials |
| Application | Through and Blind Hole |
| Type | Roll Form-InnoForm Z |
| Length Group | Extended Length |
| Coolant Fed | No |
| Coating/Finish | TIN-80 |
| Material | HSSE |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 6 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 160 mm |
| Thread Length (mm) | 10 mm |
| Flute Direction | Straight |
