Features:

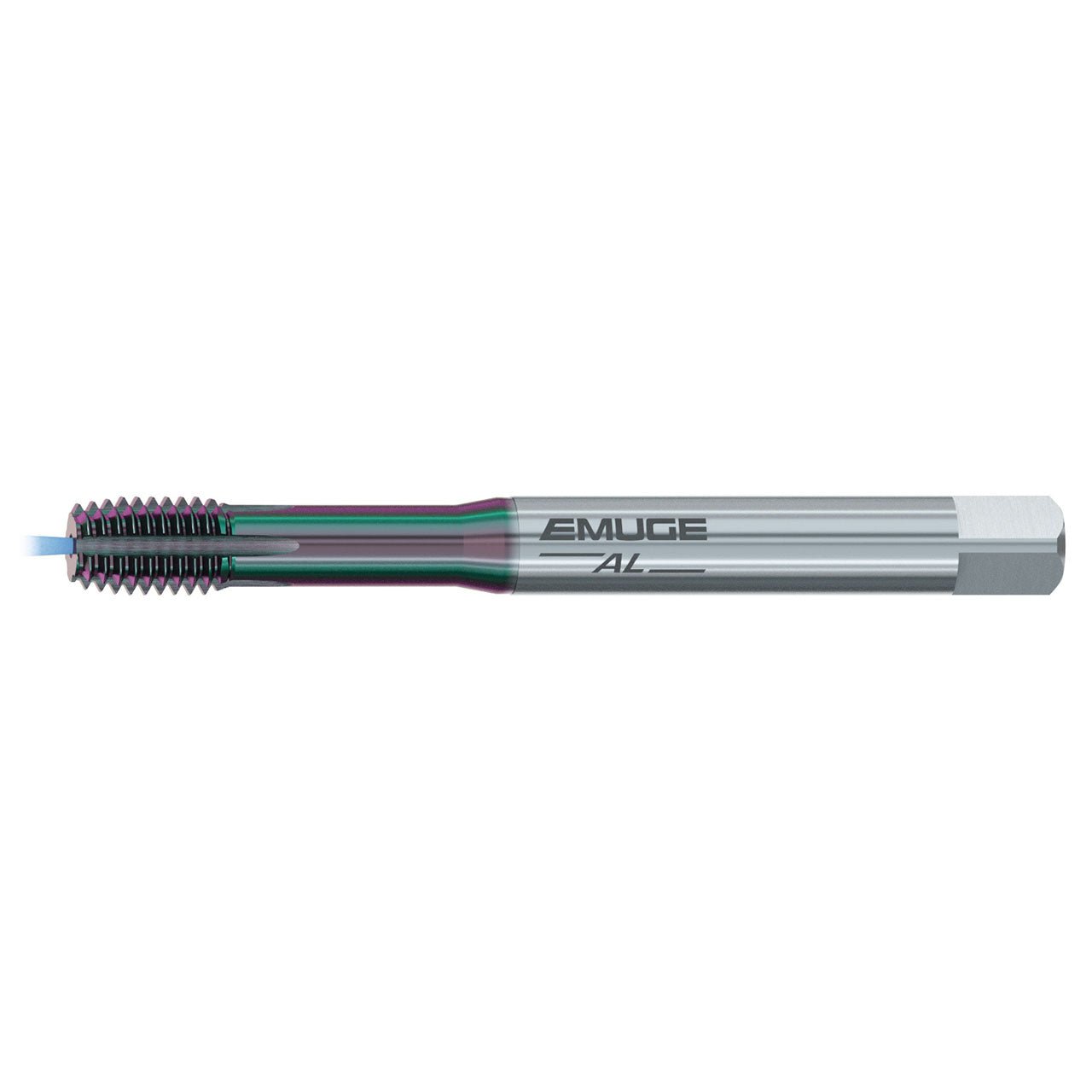

- The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
- Axial coolant fed to maximize chip evacuation and improve thread quality
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B5311Q00.0050 |
| Thread Size | M 5x0.8 |
| Thread Diameter Size | M 5 |
| Tap Square (mm) | 4.90mm |
| Thread Length (mm) | 8.00mm |
| Overall Length (mm) | 70.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | GLT-104 |
| Product Type | Thread Forming Tap |
