Features:

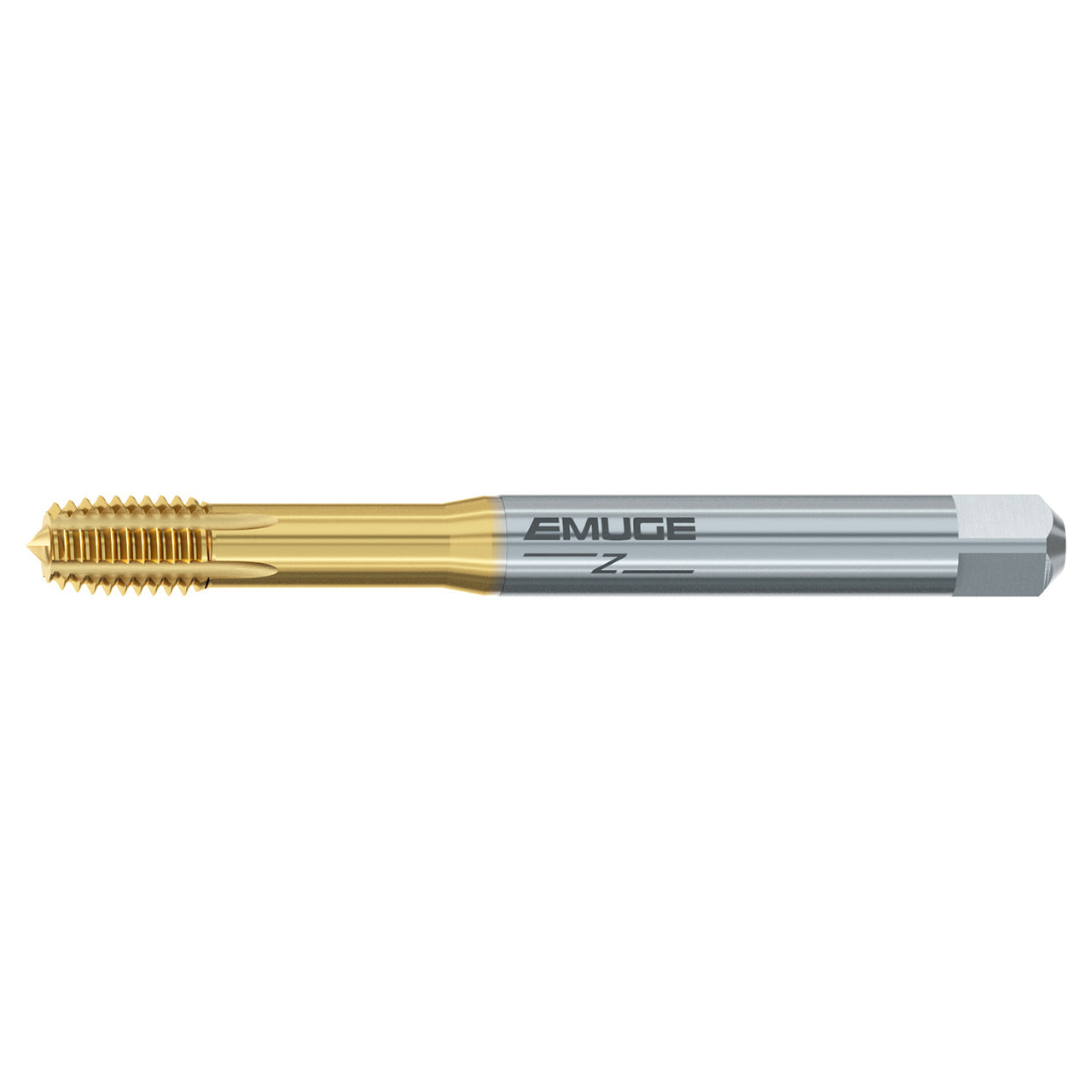

- The InnoForm Z roll form powdered metal tap is designed for many applications
- Short threaded part and special polygon shape for less torque
- TIN-80 coated for heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B521Z700.5040 |
| Cutting Diameter (Decimal Inch) | 36.000" |
| Thread Size | #8-36 |
| Thread Diameter Size | #8 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 36 TPI |
| Overall Length (mm) | 63.00mm |
| Flute Length (mm) | 13.00mm |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Tool Type | EMUGE Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
